In today’s competitive market, a product’s interface is much more than just a label; it serves as the primary point of human-machine interaction (HMI). A well-designed graphic overlay does more than just look appealing—it integrates essential functionality to deliver a seamless, durable, and intuitive user experience. Bx-Panel, a leader in custom HMI components, explores how modern custom graphic overlay solutions are evolving into multifunctional assets.
The Evolution of the Graphic Overlay: From Basic Labels to Integrated Interfaces
The days when a graphic overlay was simply a printed sheet are long gone. Today, it has transformed into a sophisticated assembly that combines multiple functions into a single, reliable unit. This integration addresses complex design challenges while enhancing both aesthetics and performance, making it a crucial element of effective product branding and usability.
Key Integrated Features that Transform User Interaction
By embedding functional elements directly into the overlay, manufacturers can achieve cleaner designs and enhanced reliability.
1. Precision Display and LED Windows

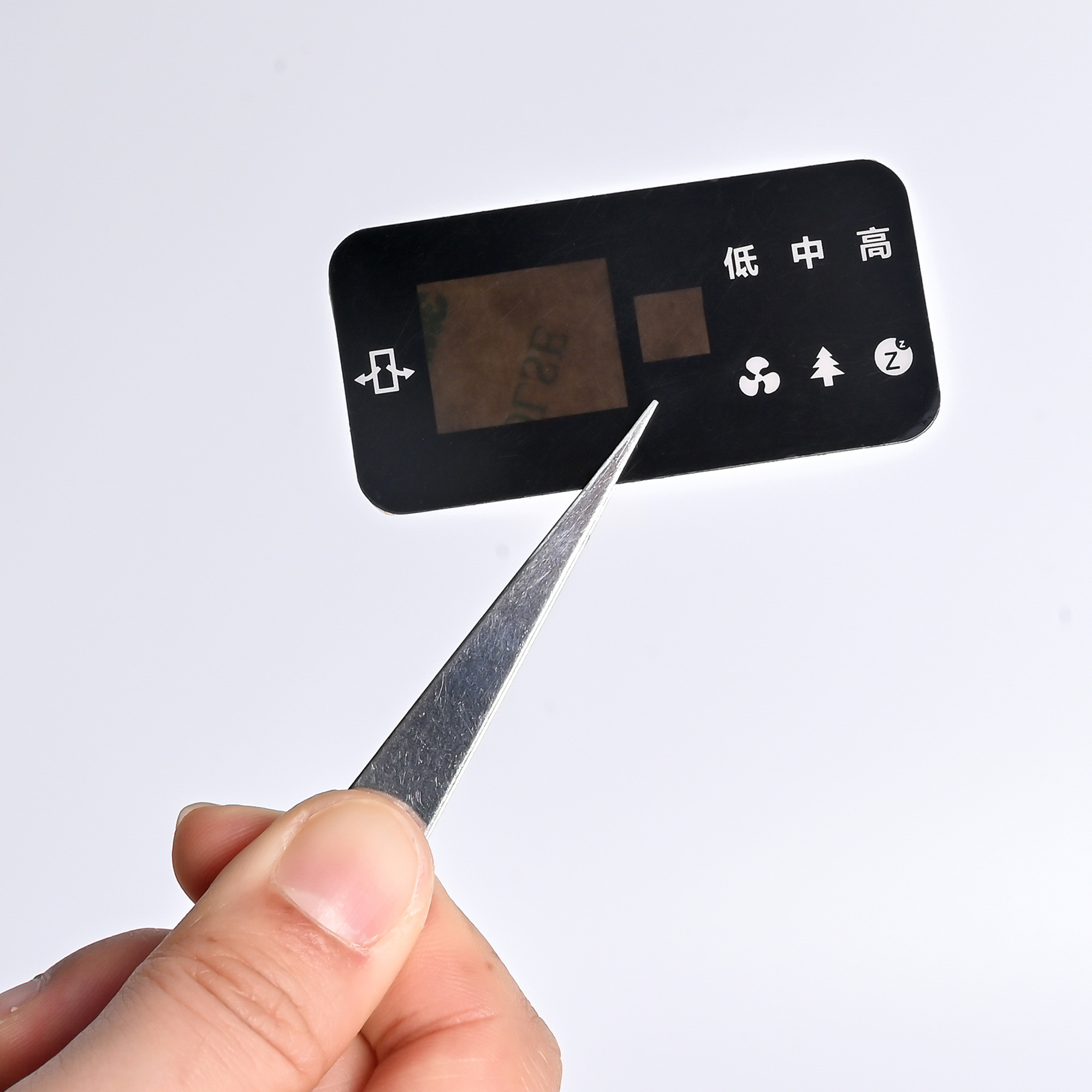

A display window overlay is crafted with optically clear materials, allowing protection for LCD or LED screens without compromising visibility. These windows can be customized with features such as:
- Anti-Glare and Anti-Reflective Properties: Ensures readability in bright sunlight or outdoor environments.
- Scratch-Resistant Surface: Protects the underlying display from damage.
- Precise Masking: Frames the display area perfectly, giving a polished, finished look.
2. Enhanced Tactile Feedback with Embossing and Metal Domes

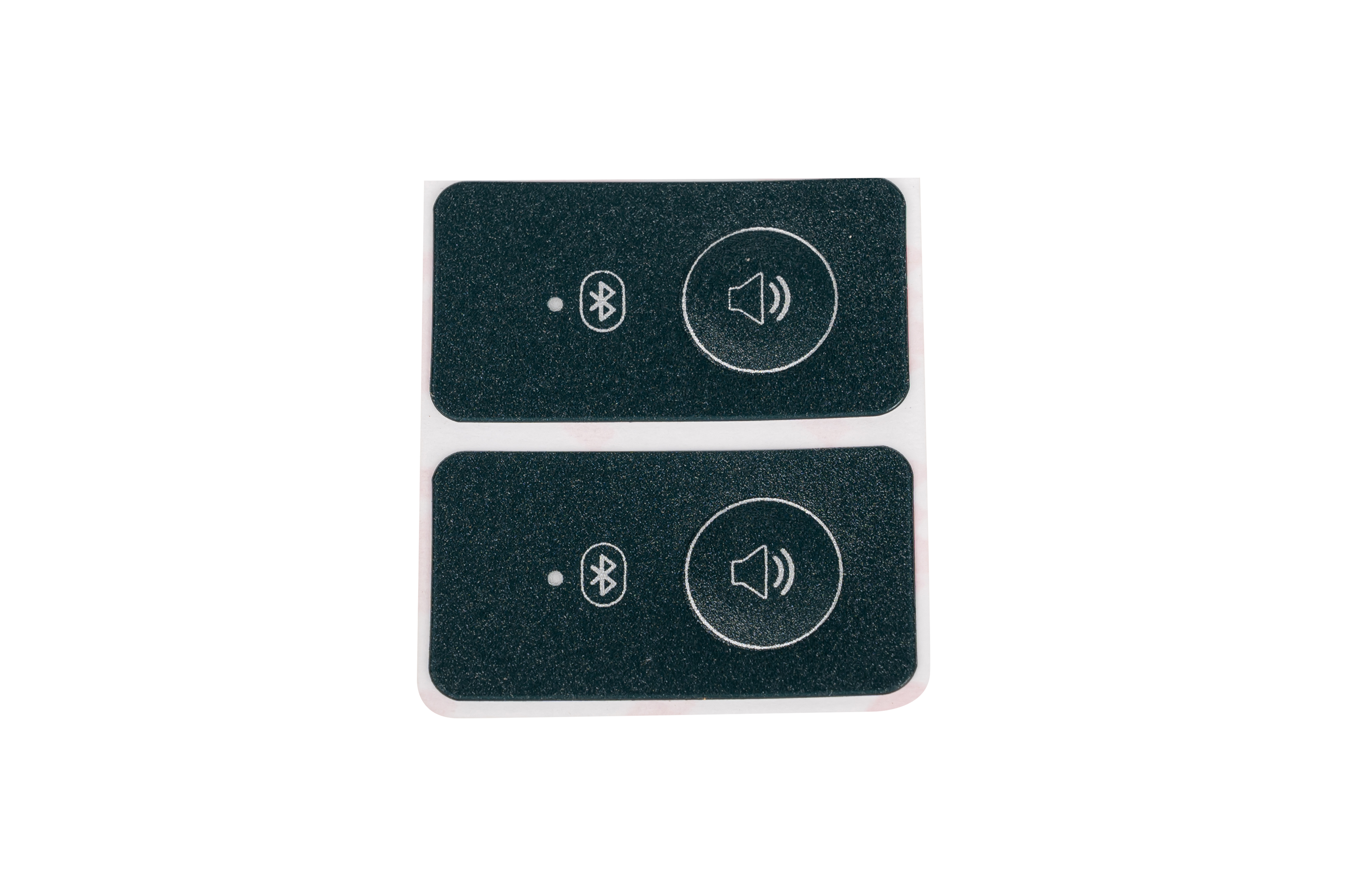

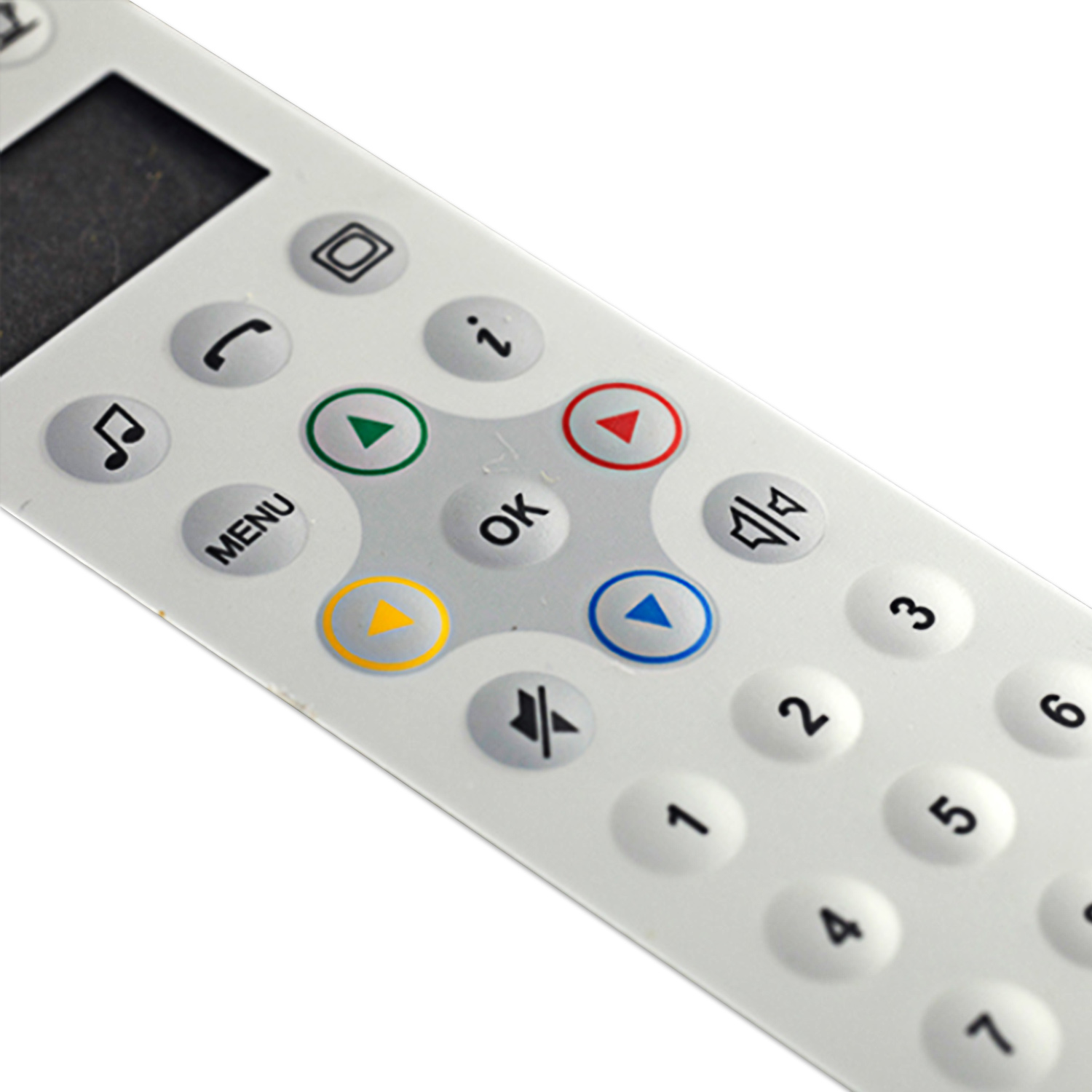

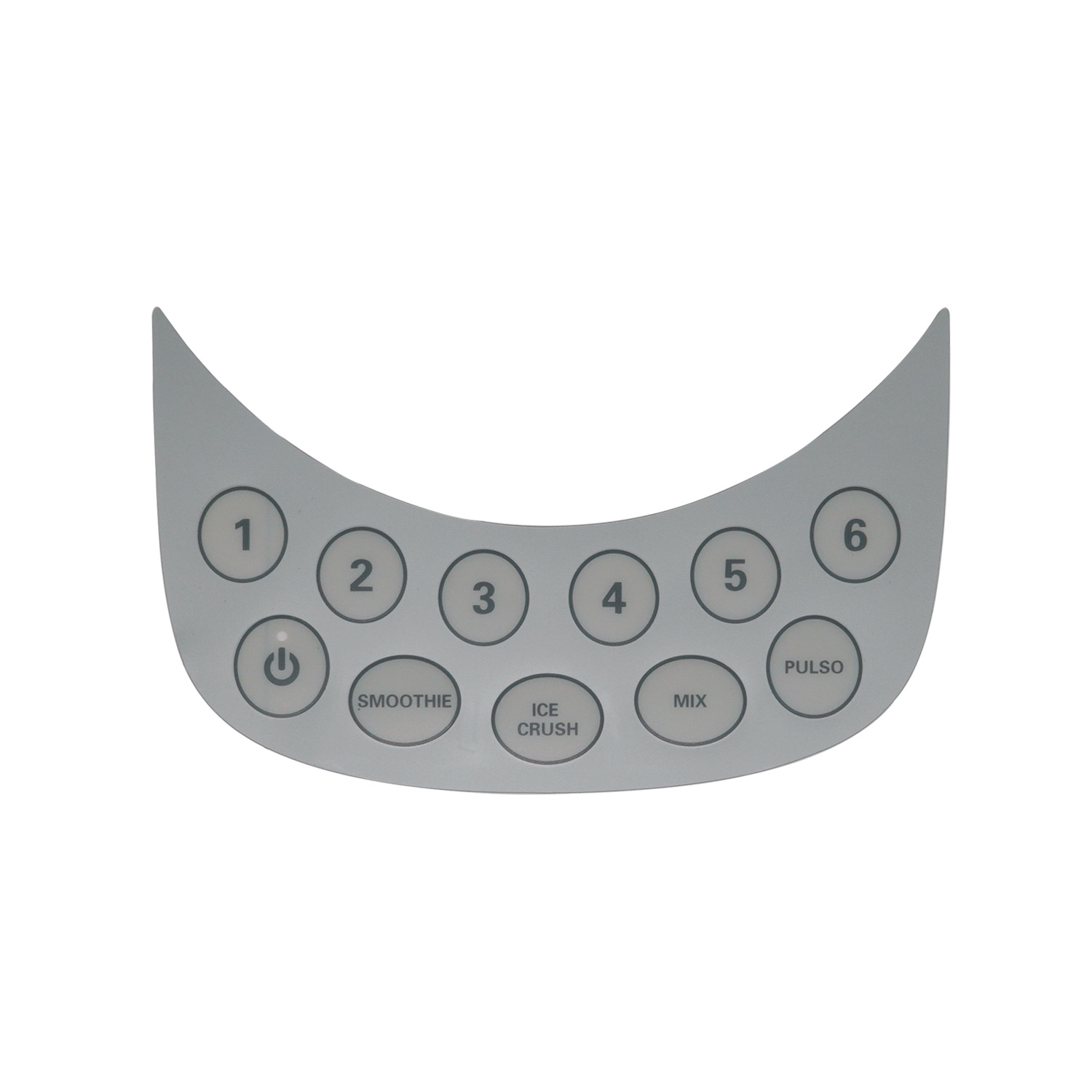

The “feel” of a button is crucial for user satisfaction. An embossed graphic overlay provides physical guidance, helping users locate buttons by touch alone. When combined with integrated tactile metal domes or polyester domes, it creates a satisfying “snap” sensation, confirming input. This feature is vital for applications where the operator cannot view the interface, such as in industrial controls or medical device panels.
3. Embedded Components and Sealing Solutions
Advanced overlays can integrate components like LEDs, resistors, or even RFID chips directly into the layers. Furthermore, the overlay itself can include adhesive gasketing to provide an environmental seal, offering IP67-rated protection against dust and moisture. This makes sealed membrane switch assemblies ideal for harsh environments, such as those found in the agricultural, automotive, and medical industries.
Curious about how these integrations could benefit your product? Share this article with your design team to start the conversation!
The Tangible Benefits: Why Integration Matters
Investing in a highly integrated graphic overlay brings measurable advantages:
- Improved Usability: Intuitive tactile cues and clear displays reduce user errors and minimize training time.
- Increased Durability and Longevity: Integrated designs reduce the number of separate parts and seams, making the product more resilient to environmental stressors.
- Simplified Assembly and Cost Reduction: A single, multifunctional component streamlines the supply chain and reduces assembly steps, ultimately lowering production costs.
- Stronger Brand Identity: A professional, high-quality interface enhances the user’s perception of the entire product.
Bx-Panel: Your Partner for Advanced Custom Graphic Overlay Solutions
At Xiamen XINBIXI Electronic Technology Co., Ltd. (Bx-Panel), we turn your interface concepts into reliable, high-performance solutions. With our 3,000㎡ in-house factory in Xiamen and a team of over 100 skilled professionals, we oversee every stage of the manufacturing process.
Our expertise covers the entire spectrum of HMI components, allowing us to create perfectly integrated systems. In addition to advanced graphic overlays, we specialize in manufacturing Membrane Switches, Acrylic Panels, Metal Nameplates, and Insulation Gaskets.
Ready to enhance your product’s interface? Contact us today for a free design consultation and sample kit. Let’s create a better user experience together.
