BX-PANEL (www.bx-panel.com), a leading innovator in custom interface solutions, today highlights the significant advantages and unique role of Metal Dome Membrane Switches in modern product design. As a core component in countless user interfaces, these switches offer unparalleled benefits that mechanical alternatives struggle to match.
Unlocking Superior Performance: The Advantages of Metal Dome Membrane Switches
Metal Dome Membrane Switches are not just buttons; they are sophisticated interfaces engineered for reliability and user satisfaction. Their integration into products delivers distinct, tangible gains:
1. Tactile Feedback & User Confidence: The metal dome provides a crisp, positive “snap” or “click” sensation upon actuation. This clear tactile feedback is crucial for users, confirming input registration without needing visual confirmation. This enhances usability, reduces errors, and improves the overall user experience, especially in applications where operators may be wearing gloves or working in low-light conditions.
2. Enhanced Durability & Longevity: Constructed from high-grade stainless steel, metal domes are exceptionally resilient. They are rated for millions of actuations (often exceeding 1 million cycles), far outlasting the lifespan of many mechanical switches prone to wear, dust ingress, or corrosion. This translates directly to product longevity and reduced maintenance costs.
3. Space-Saving & Low Profile Design: Metal Dome Membrane Switches enable incredibly thin and lightweight interfaces. This compactness is indispensable for modern, sleek product designs like portable medical devices, handheld instruments, thin control panels, and consumer electronics where internal space is at a premium.
4. Sealing & Environmental Protection: The layered construction of a membrane switch, incorporating graphic overlays and spacer layers, creates a seamless, hermetically sealed front panel. This effectively shields the sensitive circuitry and metal domes beneath from dust, moisture, spills, chemicals, and other harsh environmental factors, ensuring reliable operation in demanding industrial, medical, or outdoor settings. This sealing is far superior and easier to achieve than with traditional mechanical switches.
5. Cost-Effectiveness for Complex Interfaces: For panels requiring numerous buttons, backlighting, or complex graphics, membrane switches with metal domes offer a significantly more economical solution compared to installing and wiring multiple individual mechanical switches. The integration simplifies assembly and reduces component count.
6. Design Flexibility & Customization: The graphic overlay allows for full-color printing, icons, branding, and various textures (matte, gloss, textured). Combined with customizable dome force (actuation pressure) and feel, designers have immense freedom to create aesthetically pleasing and ergonomically tailored interfaces specific to the application and brand identity.
The Indispensable Nature of Metal Dome Switches:
Metal Dome Membrane Switches are often *irreplaceable* when the design demands:
* A completely sealed, flat control surface (impossible with protruding mechanical keys).
* Extreme durability in challenging environments.
* A specific, reliable tactile response in a low-profile format.
* Cost-efficient implementation of complex multi-button panels.
* Resistance to liquids, cleaning agents, and contaminants.

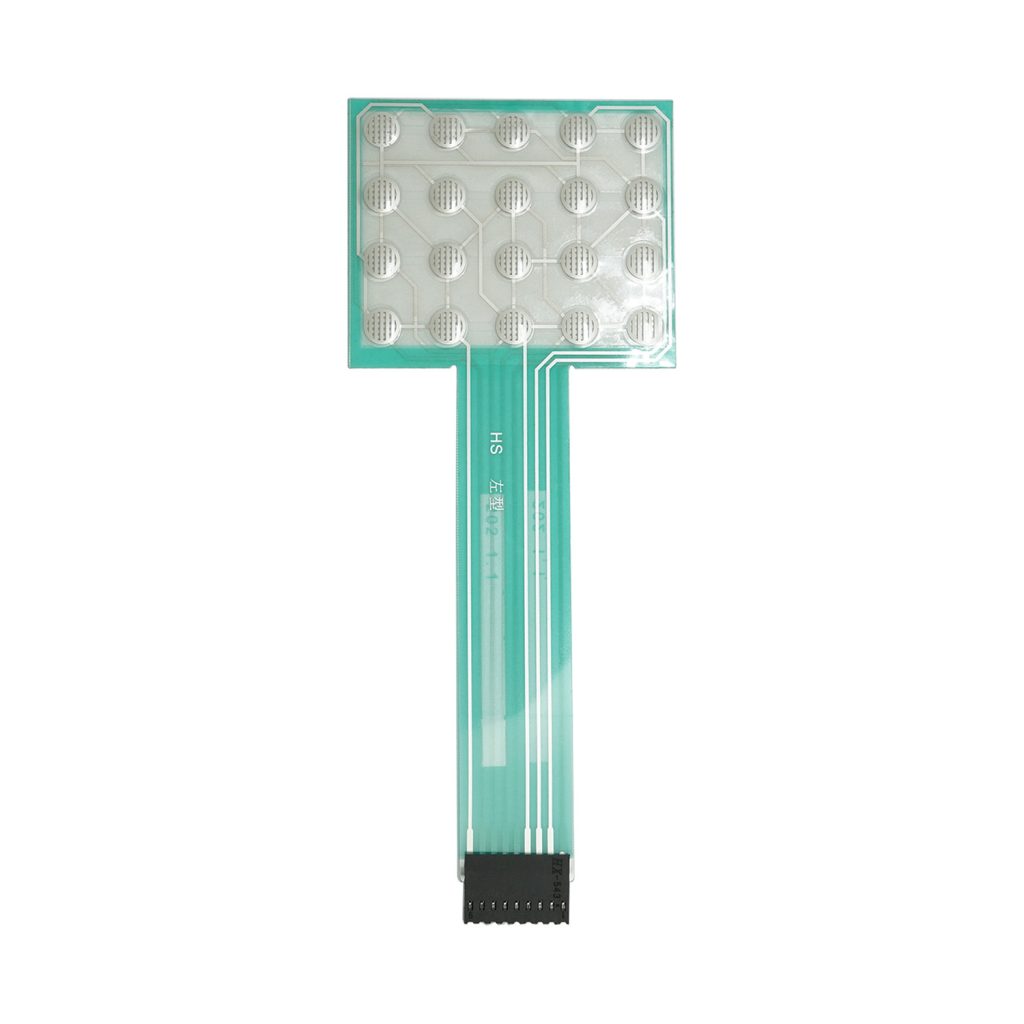

Precision Engineering: The BX-PANEL Metal Dome Membrane Switch Production Process
At BX-PANEL, we combine advanced technology with stringent quality control to manufacture reliable Metal Dome Membrane Switches:
1. Design & Tooling: Our engineering team collaborates with clients to finalize switch layout, circuit design (using silver or carbon conductive inks printed onto flexible PET layers), graphic overlay artwork, and dome specifications (size, shape, force). Precise custom tooling (dies, screens) is created.
2. Circuit Layer Printing: Conductive traces and contact points are screen-printed onto flexible polyester (PET) substrates using durable silver or carbon-based inks.
3. Graphic Overlay Fabrication: High-performance polycarbonate (PC) or polyester (PET) films are digitally or screen-printed with the interface graphics, legends, and often textured or coated for durability and feel. Windows may be cut for displays or indicators.

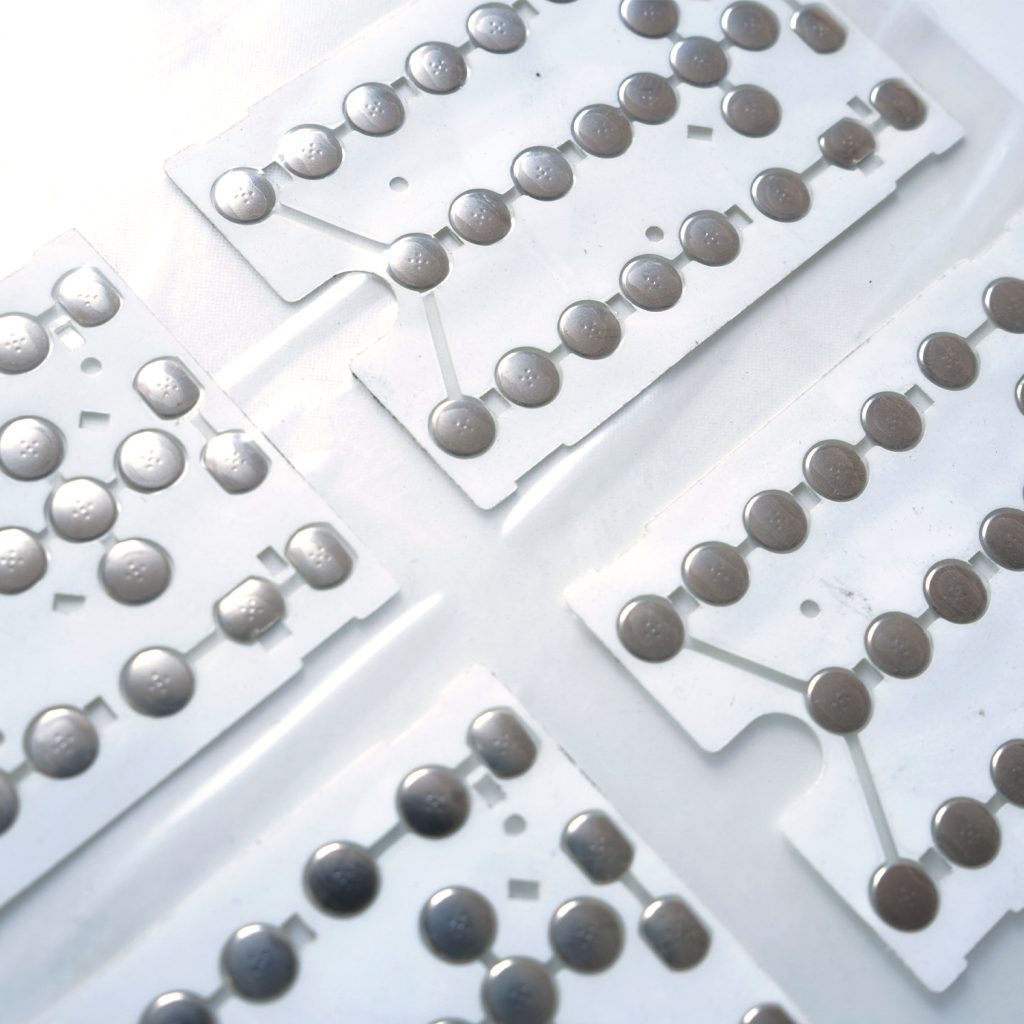

4. Metal Dome Stamping & Plating: Stainless steel is precision stamped into dome shapes (round, oblong, triangle) and often nickel or gold plated for optimal conductivity, corrosion resistance, and long life.
5. Spacer Layer Creation: A layer of adhesive-coated polyester (PET) with precisely die-cut holes (cavities) is created. These cavities house the metal domes directly above the circuit contacts.
6. Layer Lamination (Assembly): The layers are meticulously aligned and laminated together under heat and pressure using specialized adhesives:
* Graphic Overlay (Top)
* Spacer Layer (with domes placed in cavities)
* Circuit Layer(s) (with printed contacts)
* Rear Adhesive Layer (for mounting to the product)
7. Tailoring & Testing: The assembled switch is die-cut to its final shape. Each switch undergoes rigorous electrical testing (continuity, open/short circuits) and tactile response verification to ensure 100% functionality and meets specified force requirements. Environmental testing (temperature, humidity) may be performed on samples or batches.
8. Packaging & Shipping: Finished switches are carefully packaged to prevent damage and shipped to the customer for integration into their products.
BX-PANEL: Your Partner for Advanced Interface Solutions
BX-PANEL leverages premium materials and expert craftsmanship across our entire product range to deliver exceptional quality and performance:
* Â Â Membrane Switches: Utilizing PET/Polyester circuits, Polycarbonate/Graphic Overlays, Stainless Steel Domes, and specialized adhesives.
* Â Â Graphic Overlays: Crafted from durable Polycarbonate (PC) or Polyester (PET), featuring screen/digital printing, protective coatings, textures, and embossing.
* Â Â Acrylic Panels: Precision cut and fabricated from clear or colored PMMA (Acrylic), ideal for lenses, displays, nameplates, and decorative elements.
* Â Â Nameplates: Manufactured from metals (stainless steel, aluminum), plastics (PC, ABS), or laminates, employing etching, printing, and plating.
* Â Â Insulation Gaskets: Die-cut from specialized non-conductive materials like silicone, rubber, or foam to provide sealing, cushioning, and electrical insulation.
* Â Â Crystal Dome Labels: Polyurethane or Epoxy resin domes applied over printed graphics for durable, visually striking 3D labels with tactile feel.
“Metal Dome Membrane Switches remain a cornerstone technology for user interfaces demanding reliability, tactile feedback, and environmental sealing,” said [Joyce Leung/Engineer & Solution Architect]. “At BX-PANEL, we combine precision engineering, premium materials, and rigorous testing to deliver switches that enhance our clients’ products and endure the demands of real-world use. We empower designers to create intuitive, robust, and visually compelling interfaces.”
