Introduction
Backlighting is one of the most important functional features in a modern membrane switch, especially for devices used in low-light or industrial environments.
In many projects we’ve worked on, customers initially focus on graphic design or circuit layout. But in reality, the membrane switch backlighting solution often has a bigger impact on usability and product lifespan.
The two most common technologies are:
- LED backlighting
- EL (Electroluminescent) backlighting
Both have their place. But they behave very differently in real-world applications.
Understanding these differences early helps avoid reliability issues later.
Why Backlighting Is Critical in Membrane Switch Design
Backlighting improves both usability and product quality. It allows users to clearly see keys, symbols, and indicators in dark or dim environments.
This is especially important in:
- Industrial control equipment
- Medical devices
- Automotive interfaces
- Outdoor electronics
- Laboratory instruments
From an engineering standpoint, backlighting is not just a lighting component. It must work together with the circuit layer, spacer layer, and graphic overlay.
If these layers are not properly designed, problems like uneven brightness or premature failure can occur.
This is why working with an experienced membrane switch manufacturer is essential.

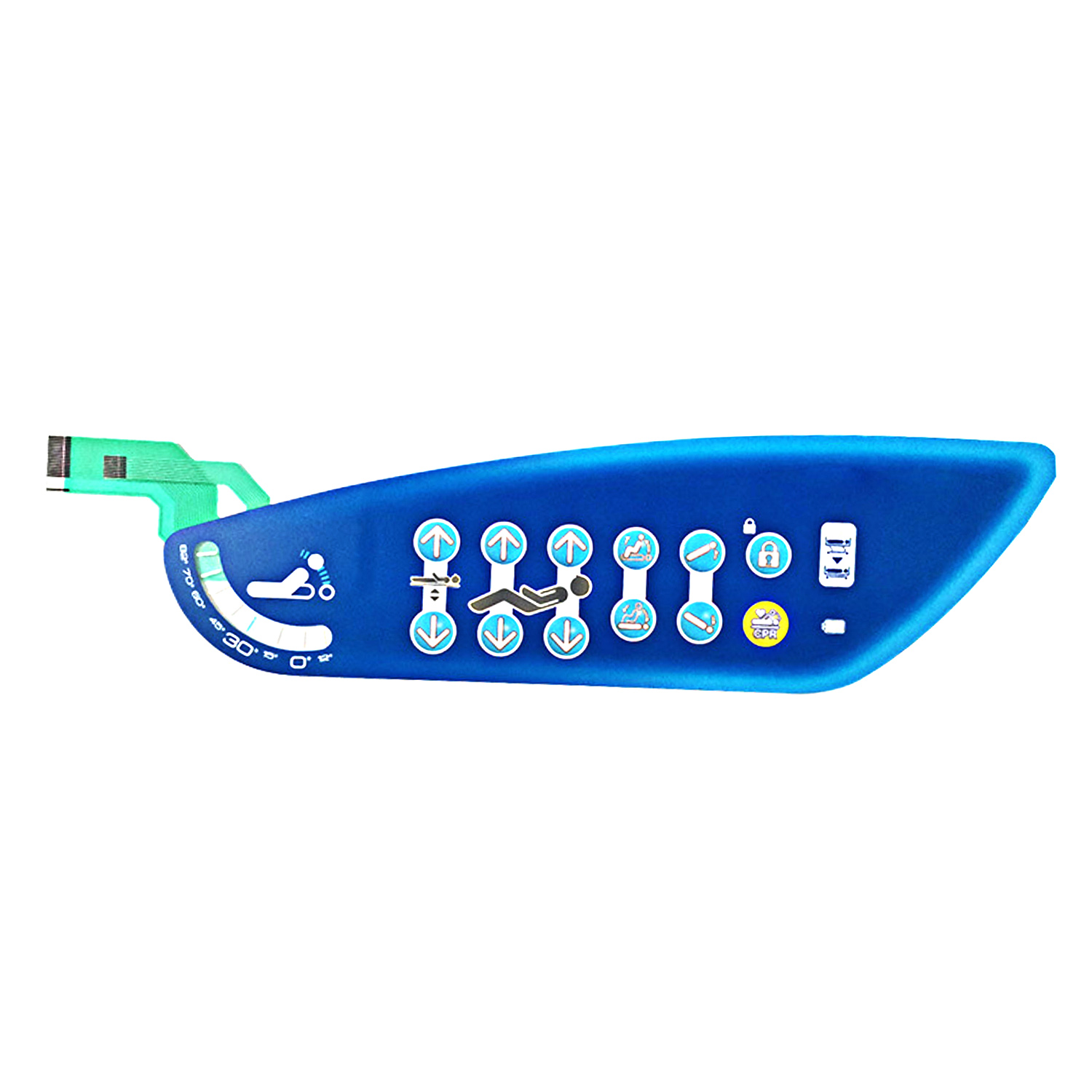

LED Membrane Switch Backlighting
LED is now the most widely used backlighting method in membrane switches.
It uses small surface-mount LEDs integrated directly into the circuit layer.
At Bx-Panel, most industrial membrane switch projects use LED because of its reliability and long lifespan.
Advantages of LED Backlighting
Extremely long lifespan
LEDs typically last more than 50,000 hours. In many cases, they outlast the device itself.
This makes LED ideal for industrial and medical equipment.
High brightness
LED provides strong and clear illumination. It remains visible even in bright environments.
Flexible lighting design
LEDs can be placed exactly where illumination is needed. This allows:
- Individual key lighting
- Indicator lighting
- Multi-color designs
- Status feedback lighting
This flexibility is one reason LED is widely used in custom membrane switch designs.
Simple electrical integration
LED operates on low-voltage DC power. No inverter is required.
This reduces system complexity and improves reliability.
Real Engineering Considerations for LED Design
In actual production, LED performance depends heavily on circuit and spacer design.
For example:
- Poor circuit layout can cause uneven brightness
- Incorrect spacing can create visible hotspots
- Improper material selection can reduce light diffusion
This is why proper circuit layer design and spacer thickness are critical.
If you haven’t read it yet, this directly relates to our previous guide:
Circuit Layers in Membrane Switches: Silver Ink vs Carbon Ink
Circuit quality directly affects LED stability and performance.

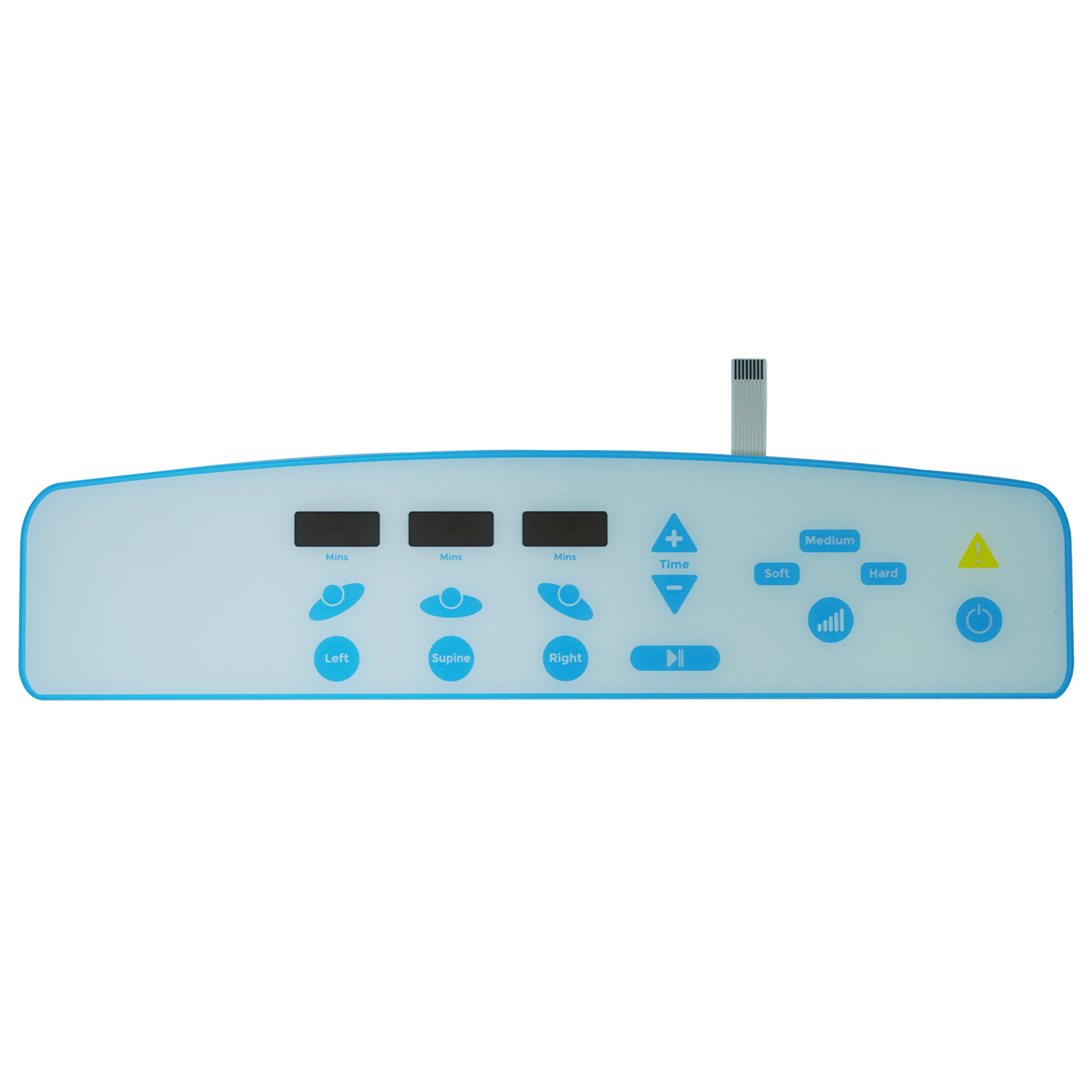

EL Membrane Switch Backlighting
EL backlighting works differently. Instead of individual light points, it uses a thin panel that produces uniform illumination across the surface.
It requires an inverter to convert DC power into AC voltage.
Advantages of EL Backlighting
Very uniform illumination
EL produces smooth and even lighting across large areas.
This works well for background illumination.
Extremely thin structure
EL panels are very thin and flexible. They work well in compact designs.
Soft visual appearance
EL produces gentle, evenly distributed light.
Limitations of EL Backlighting
In modern industrial applications, EL is used less frequently.
The main reasons include:
Shorter lifespan
EL brightness decreases over time. Typical lifespan is 8,000–15,000 hours.
This is significantly shorter than LED.
Additional inverter required
The inverter adds:
- Cost
- Design complexity
- Potential failure risk
Lower brightness
EL is not suitable for high-brightness environments.
Because of these limitations, LED is now the preferred solution in most professional applications.
LED vs EL: Which Is Better?
From real engineering and manufacturing experience, LED is the better choice for most applications.
LED offers:
- Longer lifespan
- Higher brightness
- Better reliability
- Easier electrical integration
EL may still be used in specific cases, but LED has become the industry standard.
This is especially true for industrial, medical, and commercial equipment.
Internal Structure Still Matters
Backlighting performance also depends on internal structure design.
Spacer thickness, adhesive selection, and circuit layout all affect illumination quality.
If spacer design is incorrect, it can cause:
- Light leakage
- Uneven brightness
- Reduced durability
This connects directly to our previous engineering guide:
Spacer and Adhesive Selection in Membrane Switches
Each layer plays a role in overall performance.
Engineering Experience from Bx-Panel
At Bx-Panel, we manufacture custom membrane switches in our 3000㎡ factory in Xiamen, China.
Our engineering team evaluates:
- Operating environment
- Lifetime requirements
- Electrical performance
- Backlighting requirements
Based on these factors, we recommend the most reliable backlighting solution.
Our products include:
- Membrane Switches
- Graphic Overlays
- Acrylic Panels
- Nameplates
- Insulation Gaskets
- Crystal Dome Labels
Learn more here:
Custom Membrane Switch Manufacturer → www.bx-panel.com
Conclusion
Both LED and EL can be used in membrane switch backlighting, but they serve different needs.
For most modern electronic devices, LED is the preferred solution. It provides better durability, longer lifespan, and greater design flexibility.
Choosing the right backlighting solution early helps ensure long-term product reliability.
If you are developing a new product, selecting the right membrane switch backlighting design is a critical step.
