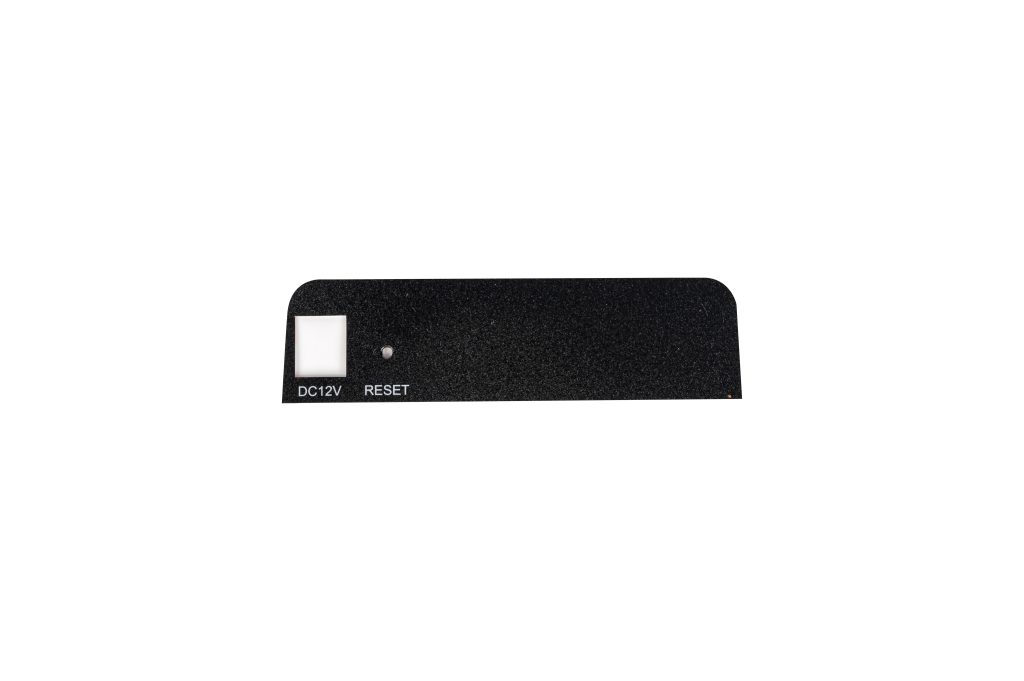

You’ve approved the design, and the vector file is locked in. Now what? As an engineer or buyer, you want to know what actually happens on the factory floor between sending a drawing and receiving a physical graphic overlay.
At BX-PANEL, we’ve spent over 10 years optimizing this exact process. Here is a transparent look at how our facility builds your custom overlay sample—skipping the delays and miscommunications you typically get with fragmented supply chains.
Step 1: Engineering & Pre-Press (Fixing Issues Before They Cost You)
We don’t just hit “print” on your file. Before any polycarbonate is cut, our engineers run a full DFM (Design for Manufacturability) review. We check color separations, window dimensions, LED placements, and tactile key zones. This is where we catch the sneaky problems: a Pantone color that might look muddy when back-printed, a transparent window edge that risks ink bleeding, or a dome placement too close to a border. We fix these on-screen with you so you don’t pay for mistakes on the production line. Once approved, every layer is perfectly mapped for the shop floor.
Step 2: Pulling the Right Materials & Adhesives
A good overlay needs to survive harsh chemicals, UV exposure, and thousands of button presses. We stock a massive inventory of raw materials right here in our facility—from standard 0.2mm – 0.5mm polycarbonate (PC) to highly flexible polyester (PET) films, alongside genuine 3M adhesives like 467MP and 468MP. We match the adhesive to your specific application. Sticking it to a textured, powder-coated metal housing requires a totally different adhesive profile than smooth ABS plastic. Because we don’t have to wait on external material suppliers, our prototyping moves much faster.

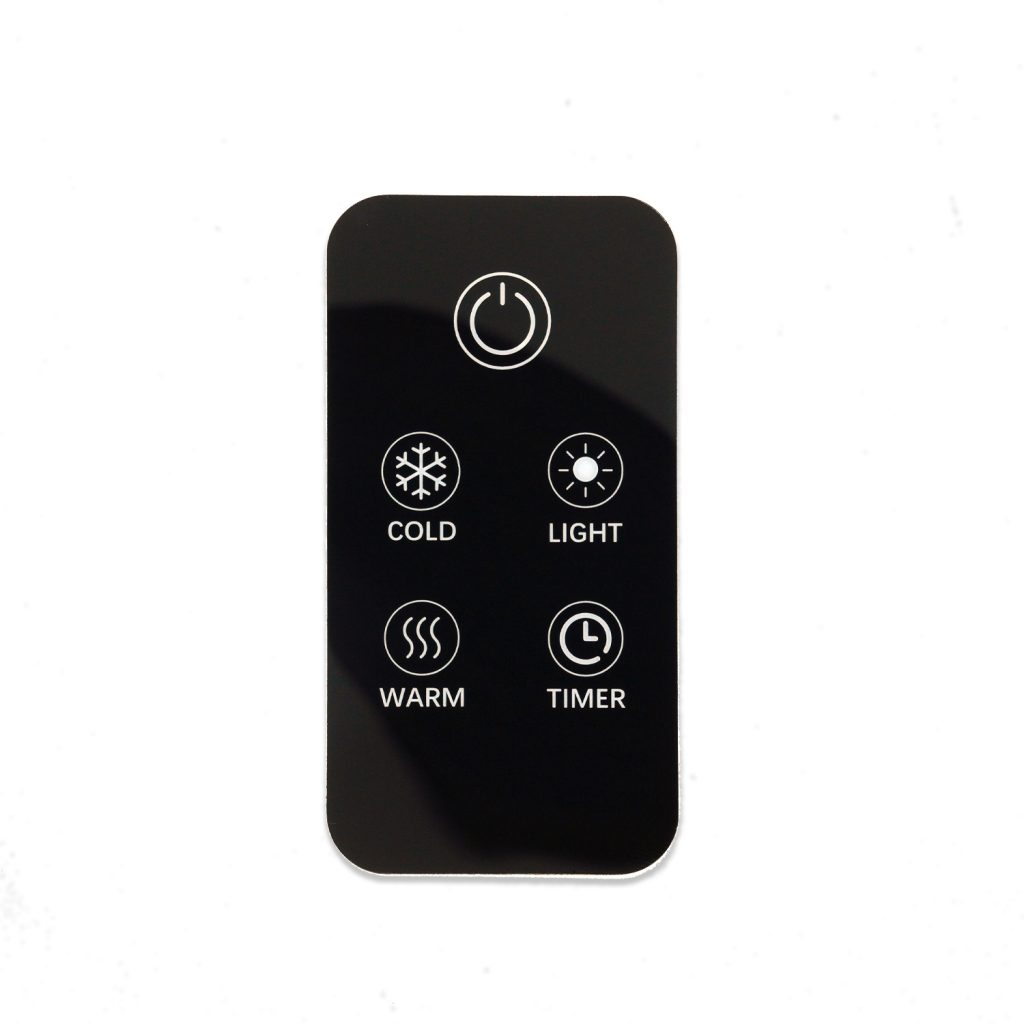

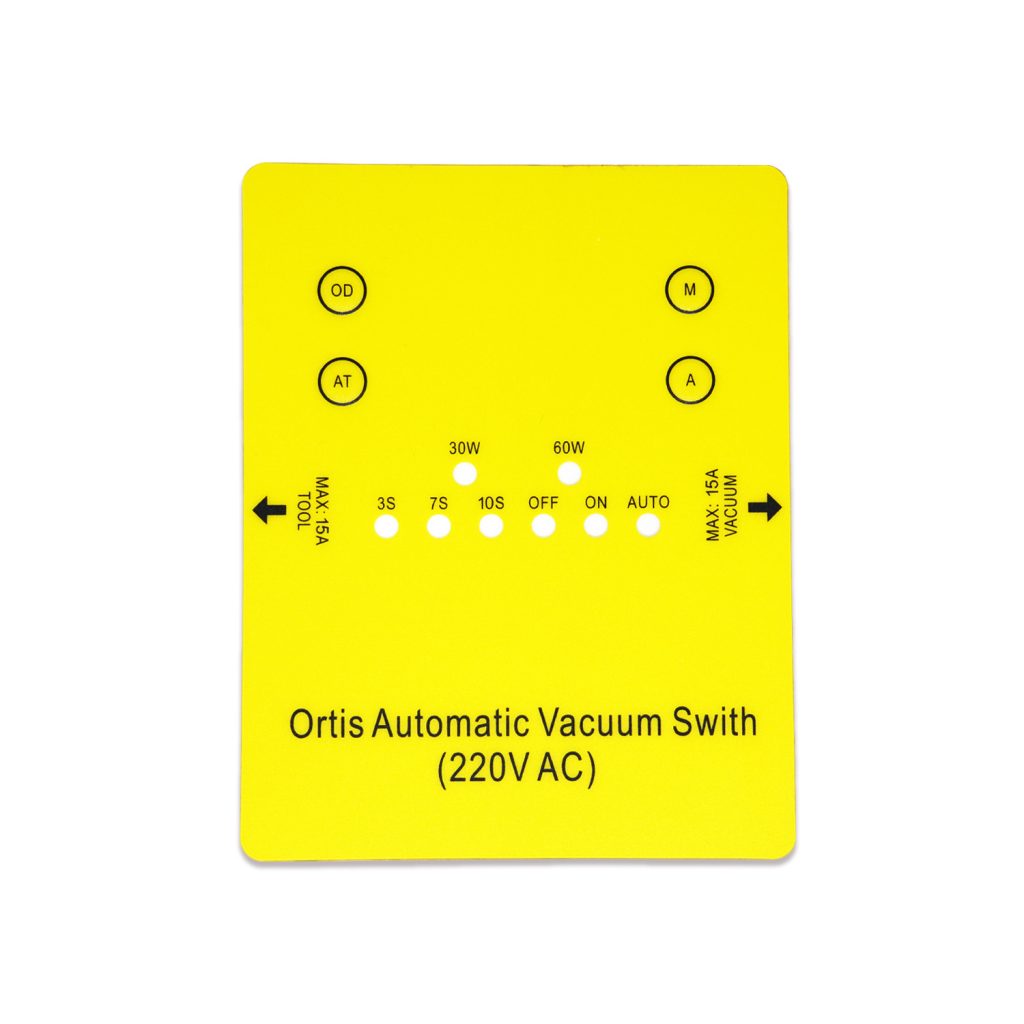

Step 3: Printing (Screen Printing vs. UV Digital)
For solid, opaque corporate colors that demand strict Pantone matching and high abrasion resistance, traditional silkscreen printing is still king. However, if your design features complex gradients, photographic elements, or you simply need a single-piece validation fast, we switch to our industrial digital UV printers. Because both setups operate under one roof, we can print, cure, and inspect the graphic layers within a single day. Every sheet is checked under standardized lighting for color accuracy and window clarity before moving forward.

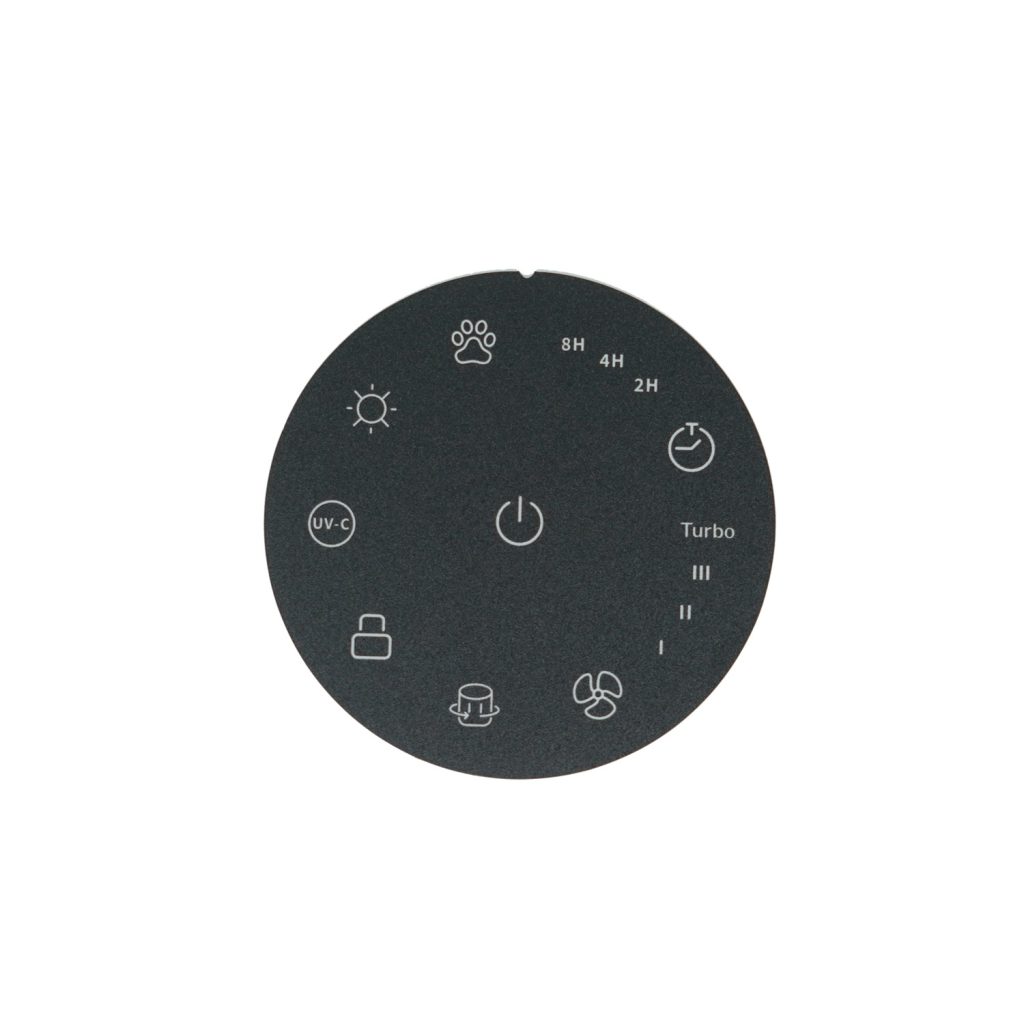

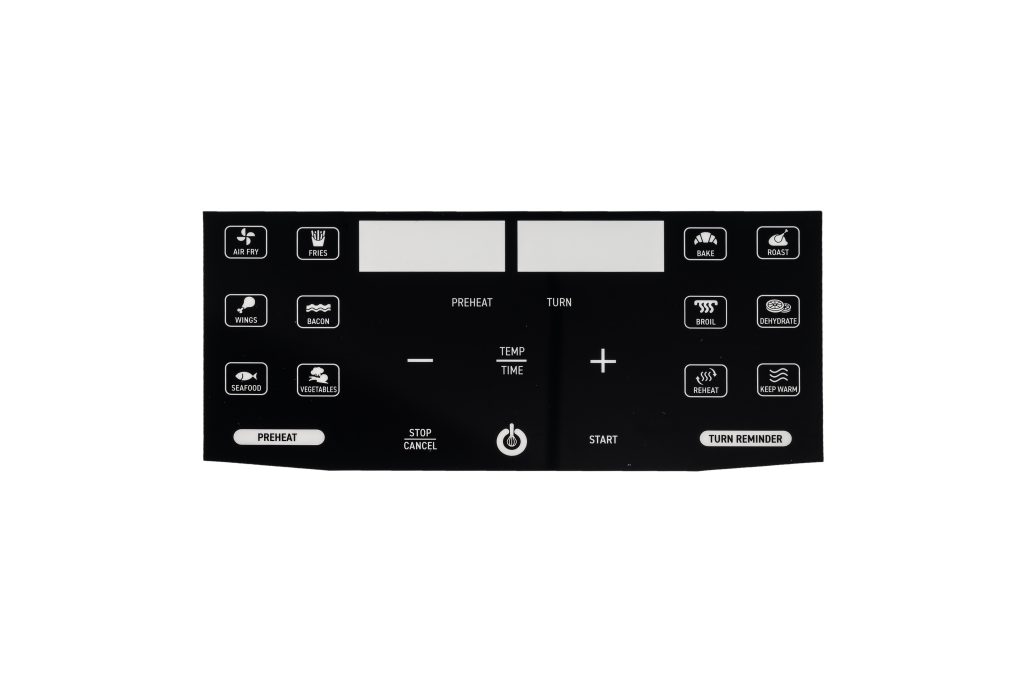

Step 4: Embossing, Lamination & Die-Cutting
Next, we give the flat sheet its physical features. If your keypad requires raised buttons for tactile feedback, we use heat-assisted forming to permanently emboss the PC/PET film. Then comes lamination, where we apply the selected pressure-sensitive adhesive backing. Finally, custom die tools or high-precision digital plotters cut the exact outer shape and internal cutouts for screens or connectors, holding tolerances down to fractions of a millimeter.

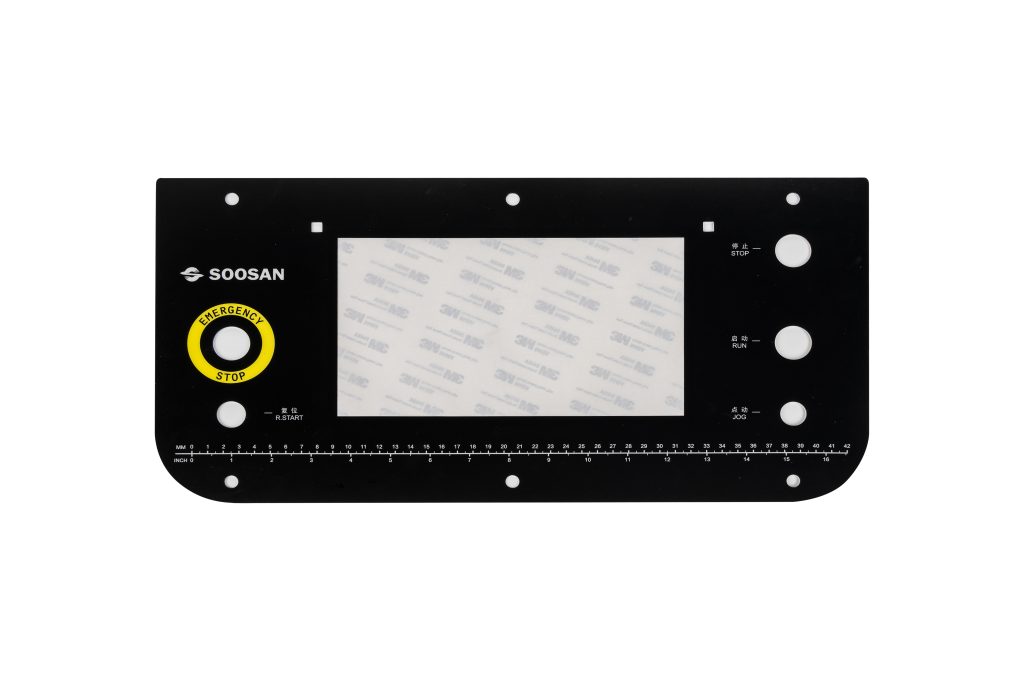

Step 5: Final Assembly & Real-World Testing
If you ordered a fully functional membrane switch prototype (not just the top graphic layer), our assembly team integrates the metal domes, spacer layers, and tail connectors. We don’t just ship it blindly. Every sample goes through physical inspection: we test the dome snap ratio, check light transmission on display windows, and measure the final cut against your CAD file. We even send you a photo and video report showing the surface finish and button clicks before it goes in the box.

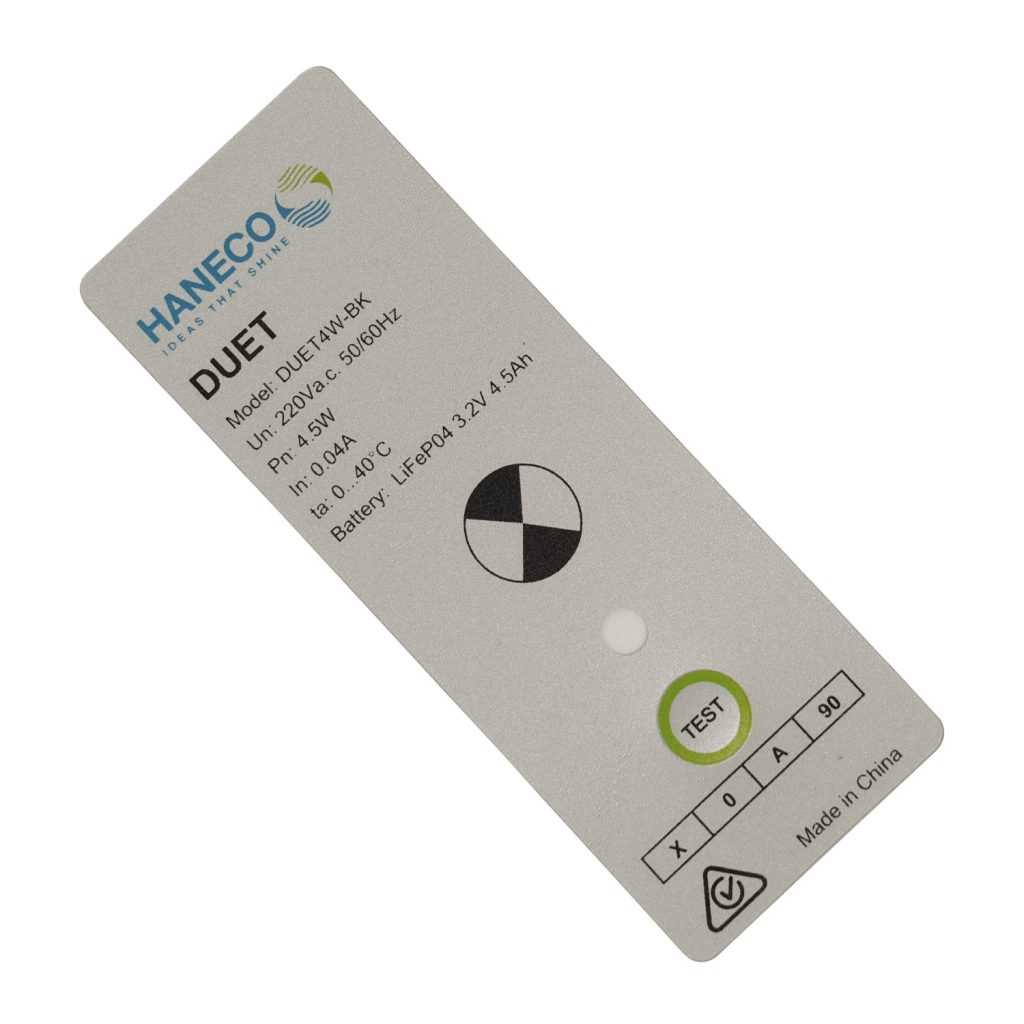

Why a Direct Factory Makes Prototyping Painless
Trading companies often outsource printing to one shop, die-cutting to another, and assembly to a third. That turns a simple prototype into a 3-week waiting game with zero quality accountability.
At XINBIXI (BX-PANEL), the entire workflow stays inside our own facility, managed by our own skilled workers. This vertical integration allows us to deliver production-grade graphic overlay prototypes in just 5 to 7 business days. And because we use the same machines for prototyping as we do for mass production, the sample you approve is exactly what you will get in your bulk order.
Let’s Build Your Prototype
Xiamen XINBIXI Electronic Technology Co., Ltd. is a source manufacturer with over a decade of experience producing custom graphic overlays, membrane switches, and control panels.
When you need to move from a design drawing to a precise, durable graphic overlay prototype, talk to our team directly.
