LED Membrane Switches
Engineered for clear visual feedback and precise touch. Integrating surface-mount LEDs or LGF (Light Guide Film) technology, these switches provide uniform backlighting and status indication. Custom-designed for low-light environments in medical, industrial, and consumer electronics.

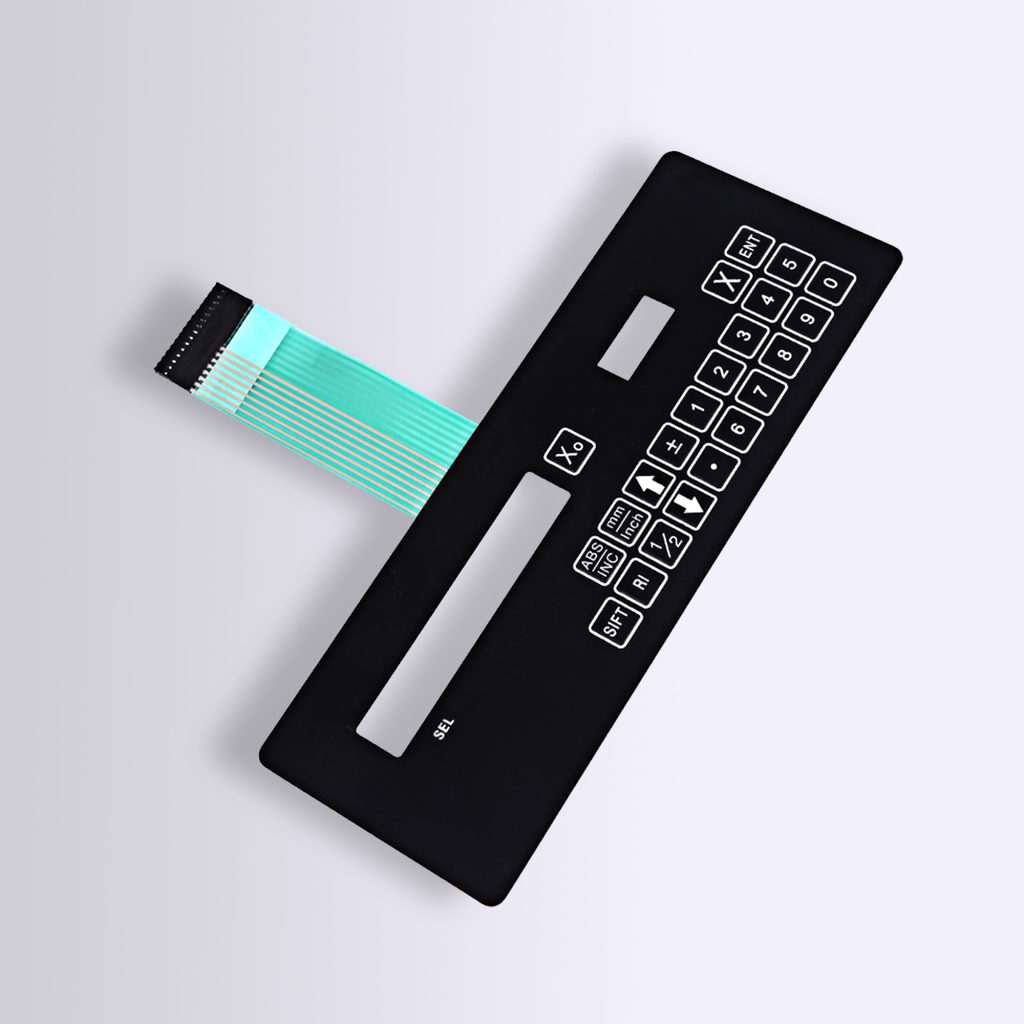

Integrated SMD LEDs
IP67 Waterproof
1 Million+ Actuations
Uniform Backlighting
Low Power Consumption
Custom Light Colors
| Electrical Specifications | Mechanical Specifications | ||
| Working Voltage | ≤50V (DC) / ≤100mA | Reliability Life | 1 million times |
| Insulation Res. | ≥100MΩ (100V/DC) | Close Displace. | 0.1~1.0mm |
| Withstand Voltage | 2KV (DC) | Migration | 10MΩ/50VDC (56h/55℃) |
| Environmental & Material Specs | |||
| Working Temp | -20℃ ～ +70℃ | Materials | PET, PC, PMMA, Metal |
| Storage Temp | -40℃ ～ +85℃ | Adhesive | 3M, Nitto, Tesa, Epoxy |
LED Membrane Switch Applications

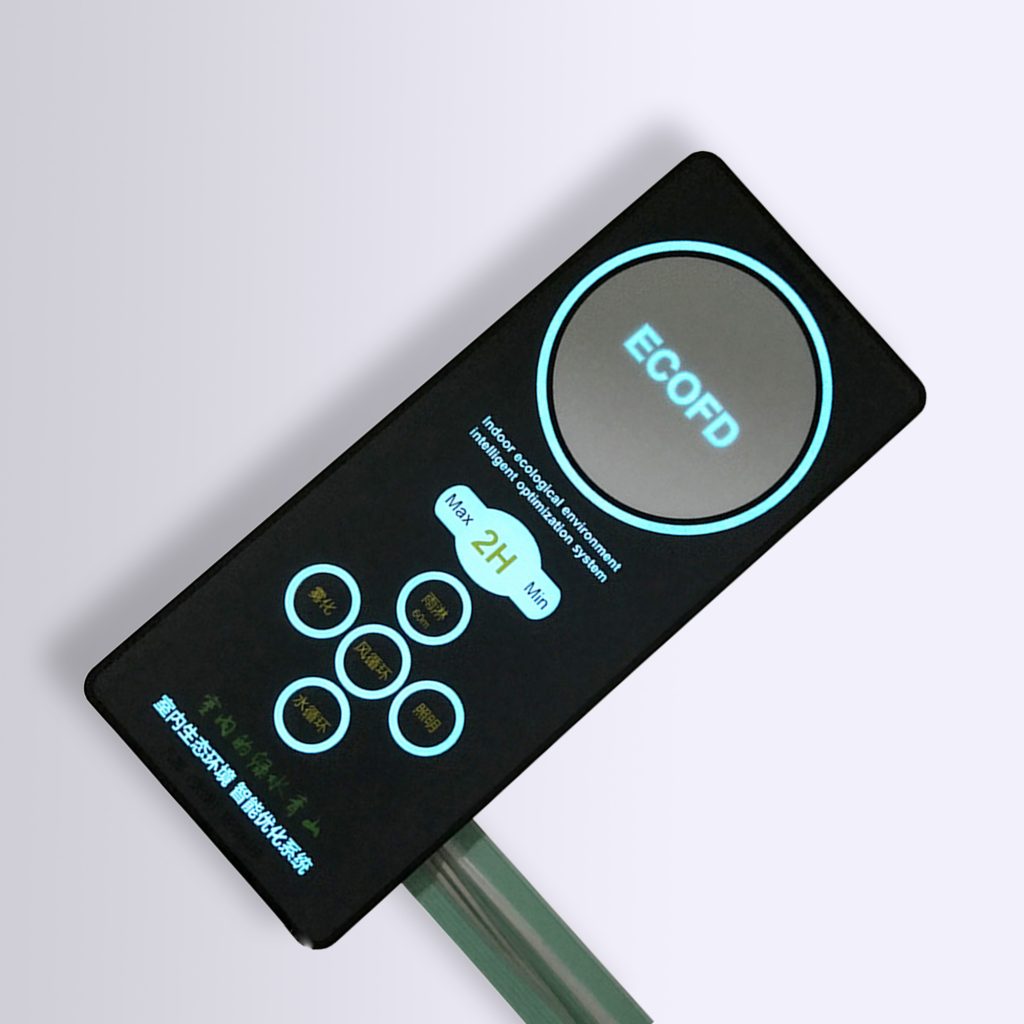

Medical Equipment
Features a completely sealed, easy-to-sterilize surface. Integrated LEDs provide clear status indication for diagnostic devices in low-light clinical settings.

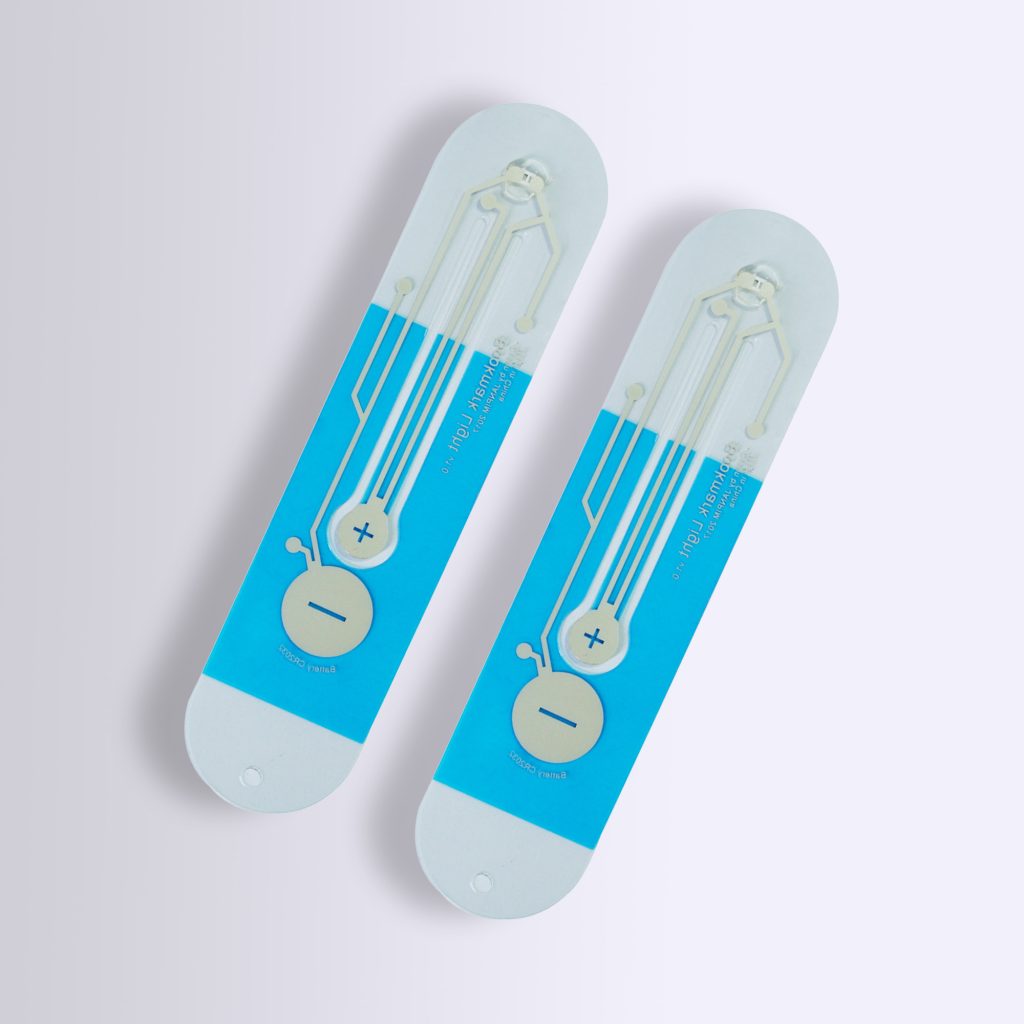

Industrial Control
Built for harsh factory environments. High-contrast LED backlighting ensures critical operational status and warning signals are instantly visible to operators.
Smart Home
Offers a modern, premium user interface. Uniform LED backlit icons guide users effortlessly, seamlessly integrating into high-end smart appliance designs.
Automotive
Built for harsh factory environments. High-contrast LED backlighting ensures critical operational status and warning signals are instantly visible to operators.
Secure Export Packaging & Global Delivery
100% Final Inspection
Final Quality Check
Global Dispatch
Flexible Trade Terms
Frequently Asked Questions
Q1: Can you integrate different colored LEDs into one membrane switch?
A: Yes, we can integrate multiple SMD LEDs in different colors (Red, Green, Blue, Yellow, White, etc.) into a single membrane switch panel. We can also use bi-color or RGB LEDs for status indication, ensuring clear visual feedback for various operational modes.
Q2: How do you prevent LED light from bleeding or mixing between different buttons?
A: We use precise light-blocking layers and custom-designed spacer layers. By implementing physical isolation walls and blackout printing techniques around each LED, we ensure the light is concentrated only on the intended icon or window, eliminating any light bleed or “halo” effect.
Q3: Are LED membrane switches durable enough for harsh industrial environments?
A: Absolutely. Our LED membrane switches can be engineered to meet IP65 to IP67 waterproof and dustproof ratings. The LEDs are securely embedded within the sealed layers, protecting them from moisture, chemicals, and extreme temperatures (-20°C to +70°C).
Q4: Will adding LEDs make the membrane switch panel too thick?
A: We utilize ultra-thin surface-mount (SMD) LEDs that typically add only 0.4mm to 0.6mm to the total thickness. Through strategic embossing of the graphic overlay or using thicker spacer layers, the final product remains sleek and low-profile while maintaining excellent tactile feedback.
