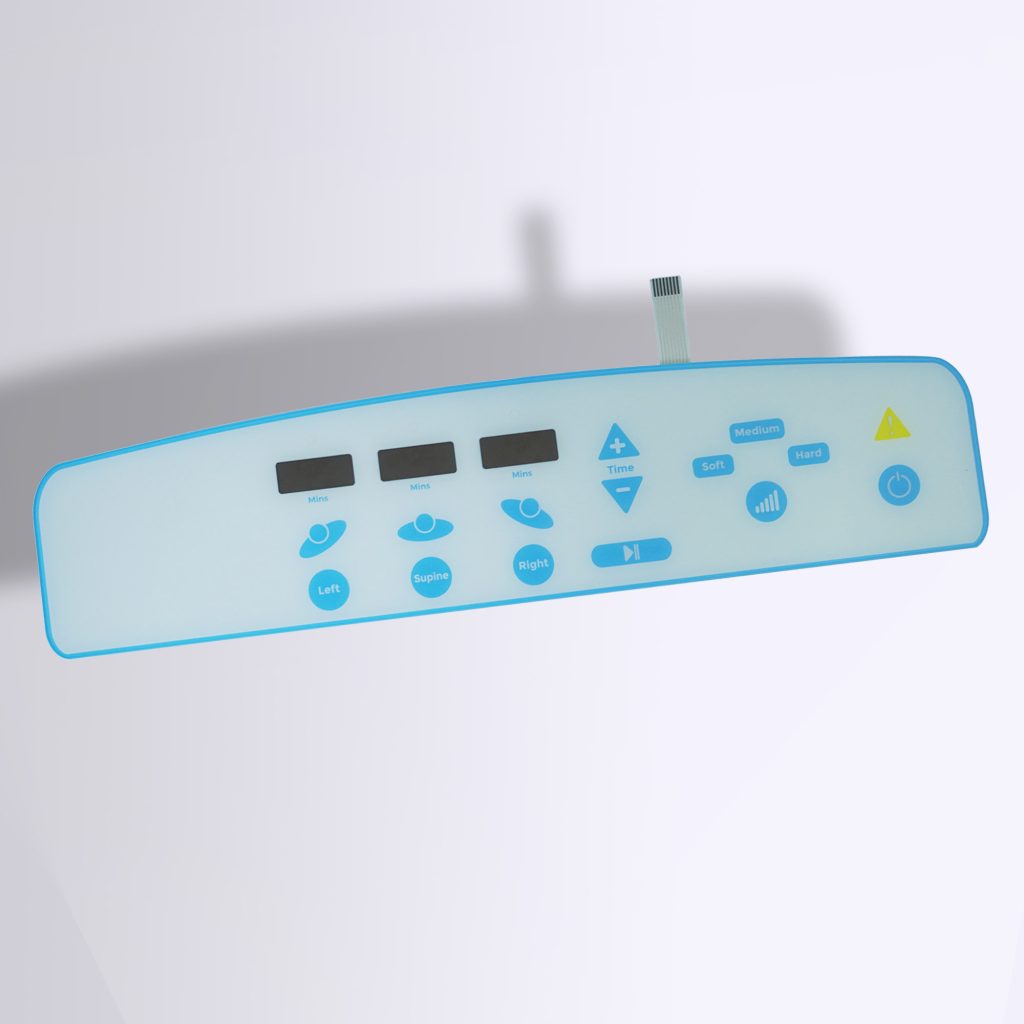

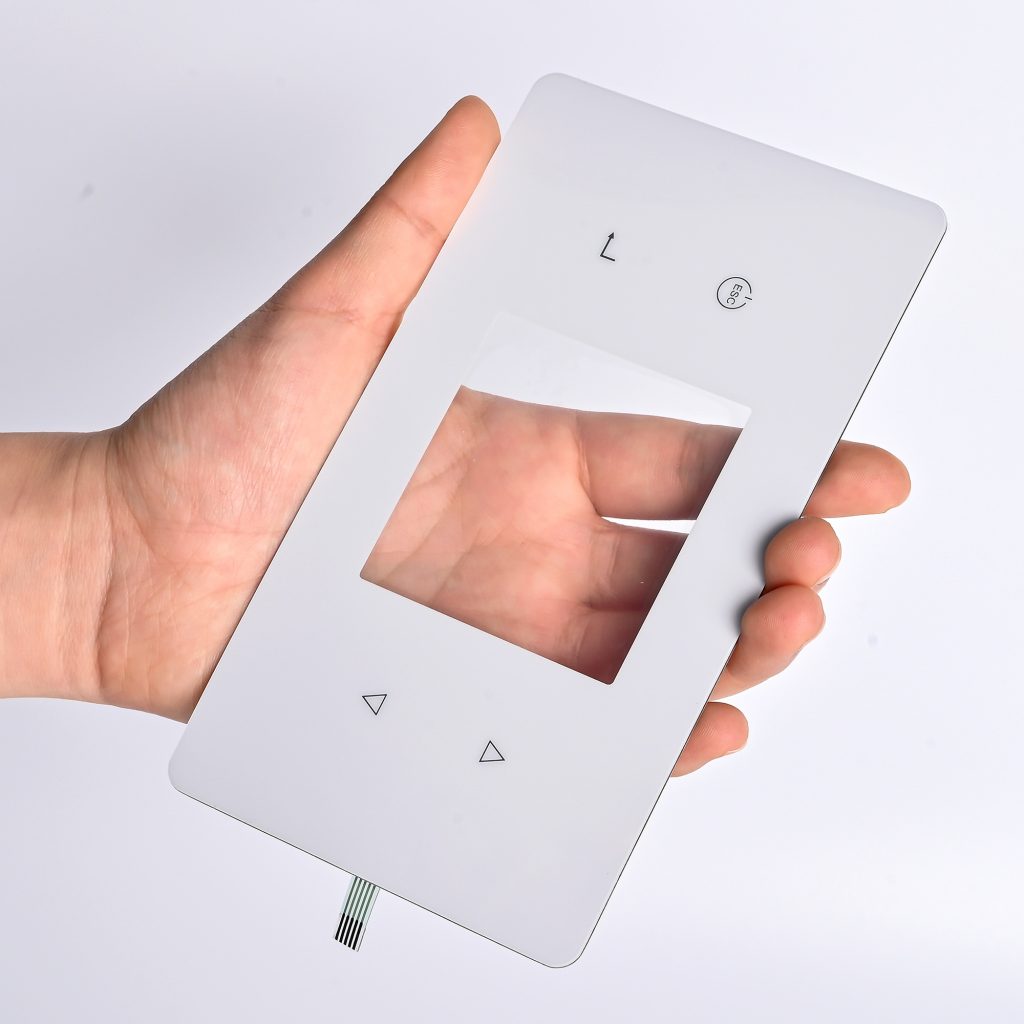

Capacitive Membrane Switches

Engineered for precise touch and high durability. Custom-designed for medical and industrial applications with IP67 waterproof and backlit options.

100% Custom Layout

IP67 Waterproof

1 Million+ Cycles

LED Backlit Options

Fast Prototyping

Engineering Support

Electrical Specifications Mechanical Specifications
Working Voltage≤50V (DC) Reliability Life1 million times
Working Current≤100mA Rebound Time≤6ms
Contact Resistance0.5~10Ω Close Displace0.1~1.0mm
Environmental & Material Specs
Working Temp-20℃ ～ +70℃ MaterialsPET, PC, PMMA, Metal
Storage Temp-40℃ ～ +85℃ Adhesive3M, Nitto, Tesa
GET A CUSTOM QUOTE

Capacitive Membrane Switch Applications

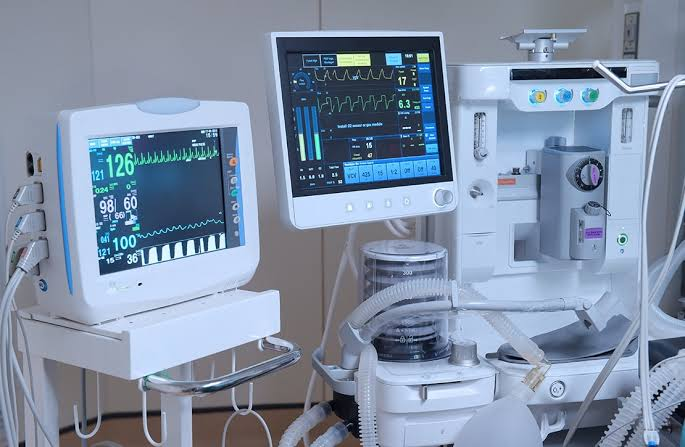

Metal dome membrane switch for medical equipment

Medical Equipment

Features a flat, completely sealed surface that is easy to sterilize and highly resistant to medical chemicals. Ensures precise input for diagnostic devices.

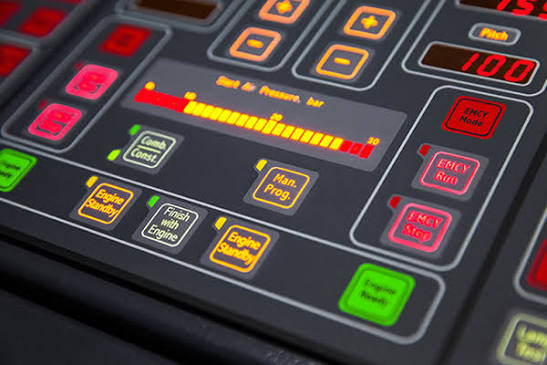

Tactile HMI control panel for industrial machinery

Industrial Control

Built for harsh factory settings. The IP67-rated structure effectively blocks dust, oil, and moisture, ensuring stable operation and long lifespan on control panels.

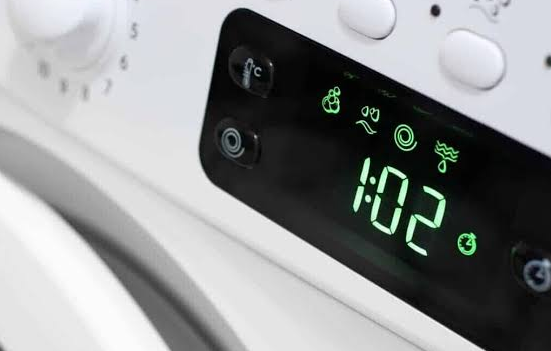

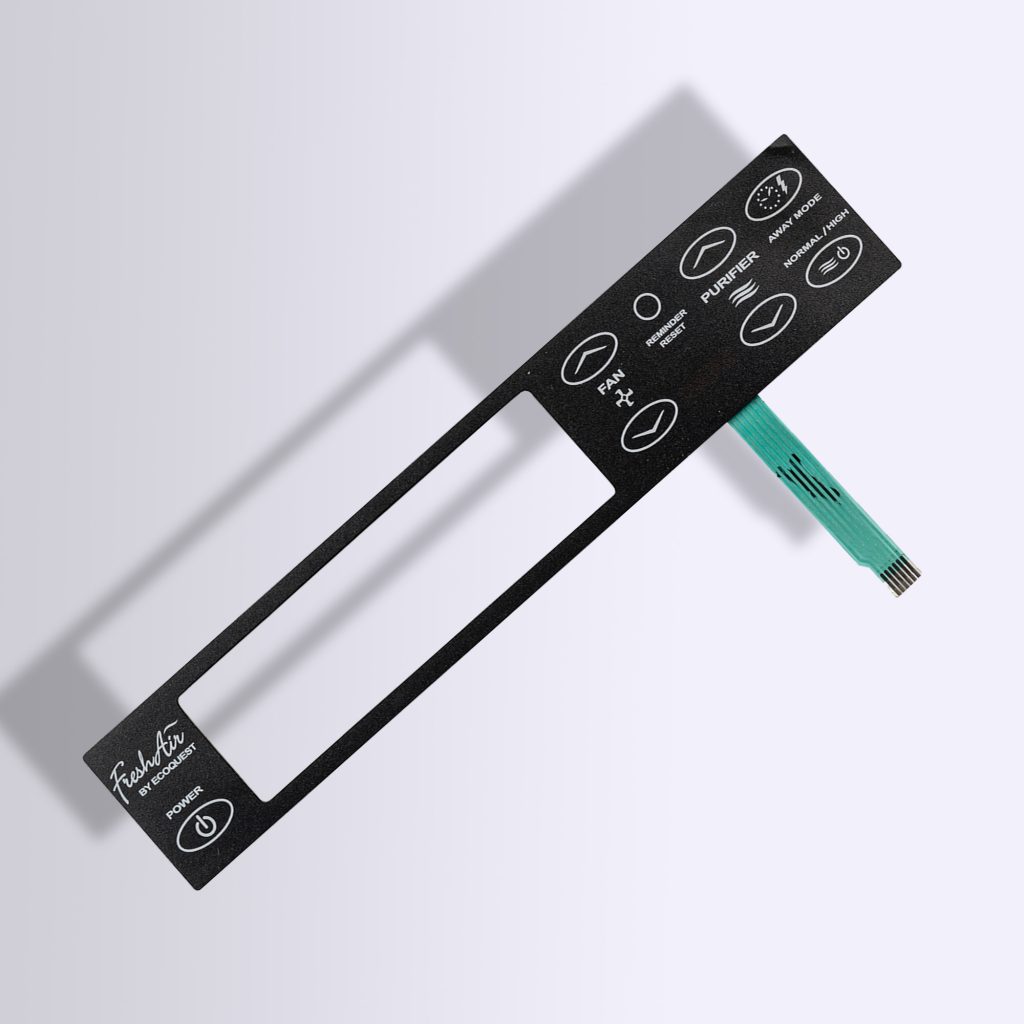

Smart home appliance membrane keypad

Smart Home

Offers flexible custom layouts and integrated LED backlighting. The low-profile design seamlessly integrates into smart appliances, providing an intuitive and modern user interface.

Automotive interior tactile switch control

Automotive

Operates reliably across wide temperature ranges (-20℃ to +70℃). Withstands continuous vehicle vibrations, making it an ideal choice for interior electronic control panels.

Secure Export Packaging & Global Delivery

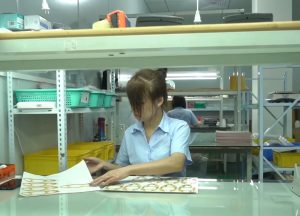

Membrane switch quality control inspection

100% Final Inspection

Bx-Panel factory packing and boxing for global delivery

Final Quality Check

Bx-Panel global logistics partners including FedEx, DHL, and sea freight options

Global Dispatch

Flexible international shipping methods and trade terms including EXW, FOB, and DDP

Flexible Trade Terms

Frequently Asked Questions

Q1: What is your Minimum Order Quantity (MOQ) for custom membrane switches?

A: Our standard MOQ for mass production is typically 500 pcs. However, we fully support your R&D and prototyping phases, so we also accept small batch orders (e.g., 50-100 pcs) for initial testing and market validation.

Q2: What is the typical lead time for prototypes and mass production?

A: Once the engineering drawings are confirmed and approved:

Prototypes/Samples: 7 to 10 working days.
Mass Production: 15 to 20 working days, depending on the order volume and material availability.

Q3: How do you ensure the IP67 waterproof rating and reliability?

A: We conduct rigorous in-house quality control, including water submersion tests, life-cycle testing (up to 1 million actuations), and extreme temperature cycling (-20℃ to +70℃). Official third-party IP67 testing reports can also be provided upon request.

Q4: What design file formats do you need for a custom quote?

A: We prefer vector formats like .AI, .CDR, or .PDF for graphic overlays. For structural dimensions and circuits, AutoCAD (.DWG/.DXF) or STEP files are ideal. If you only have a rough sketch or concept, our engineering team can assist in drafting the official production drawings for your approval.
