Custom Die-Cut Gaskets & Components

Modern industrial equipment and complex electronics require more than just outer enclosures; they demand flawless internal protection, sealing, and connectivity. At BX-PANEL, we provide comprehensive, tight-tolerance die-cutting solutions.

From electrical insulation and EMI shielding to precise thermal management and adhesive mounting, our engineering team converts high-performance raw materials into custom, ready-to-assemble components tailored to your exact CAD specifications.

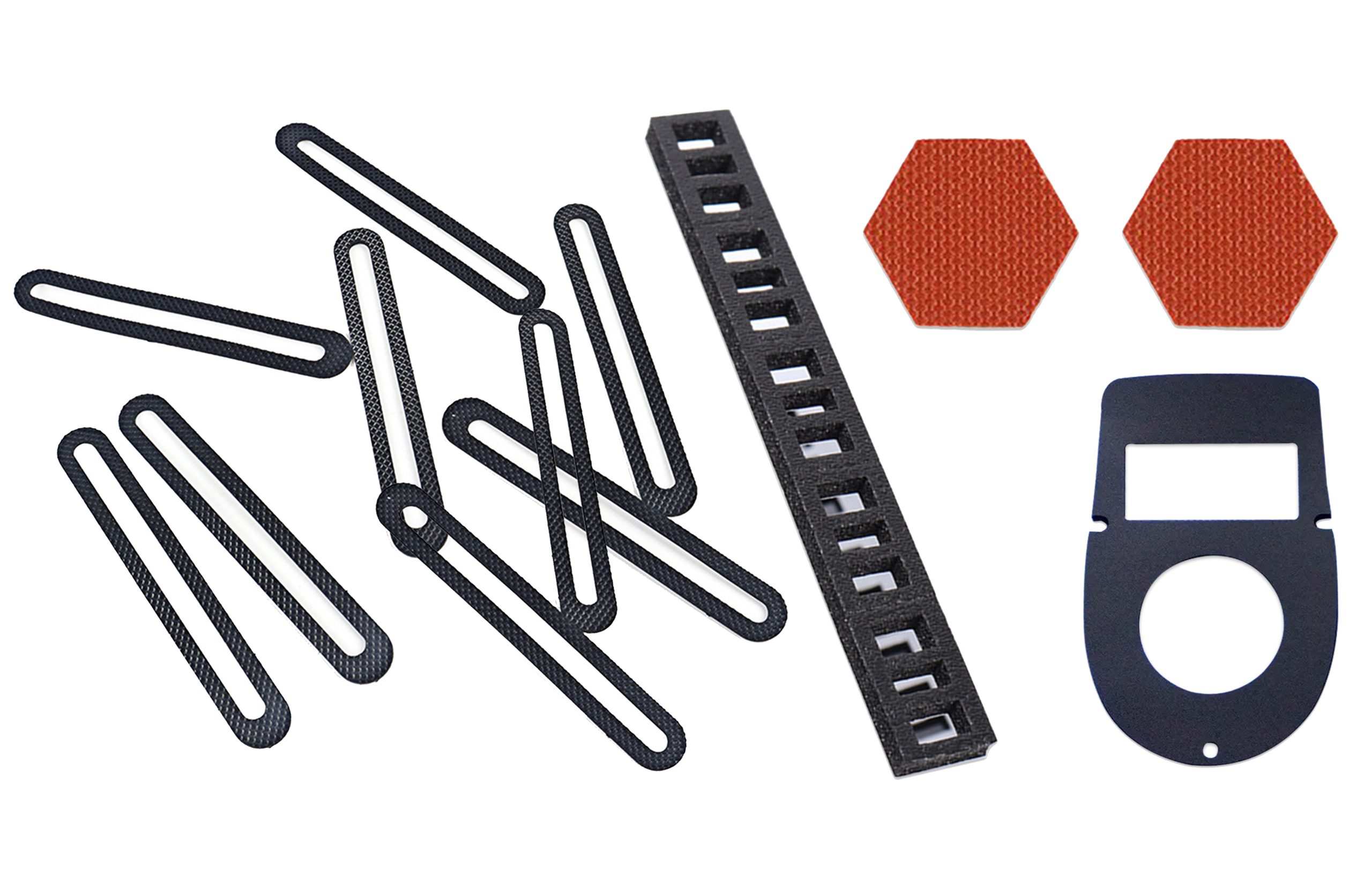

Comprehensive Die-Cut Material Capabilities

We stock and process a massive matrix of industrial-grade substrates to solve your toughest engineering challenges. Our core die-cut capabilities include:

1. Electrical Insulation Gaskets Engineered to prevent short circuits and withstand high-voltage environments.

  • Materials: Polycarbonate (PC), Polyester (PET / Mylar®), Polyimide (Kapton®), and Flame Retardant (FR) papers.

  • Applications: Power supply isolation, battery pack insulation, and PCB protection.

2. EMI/RFI Shielding & Conductive Components Designed to block electromagnetic interference and ensure clean signal transmission.

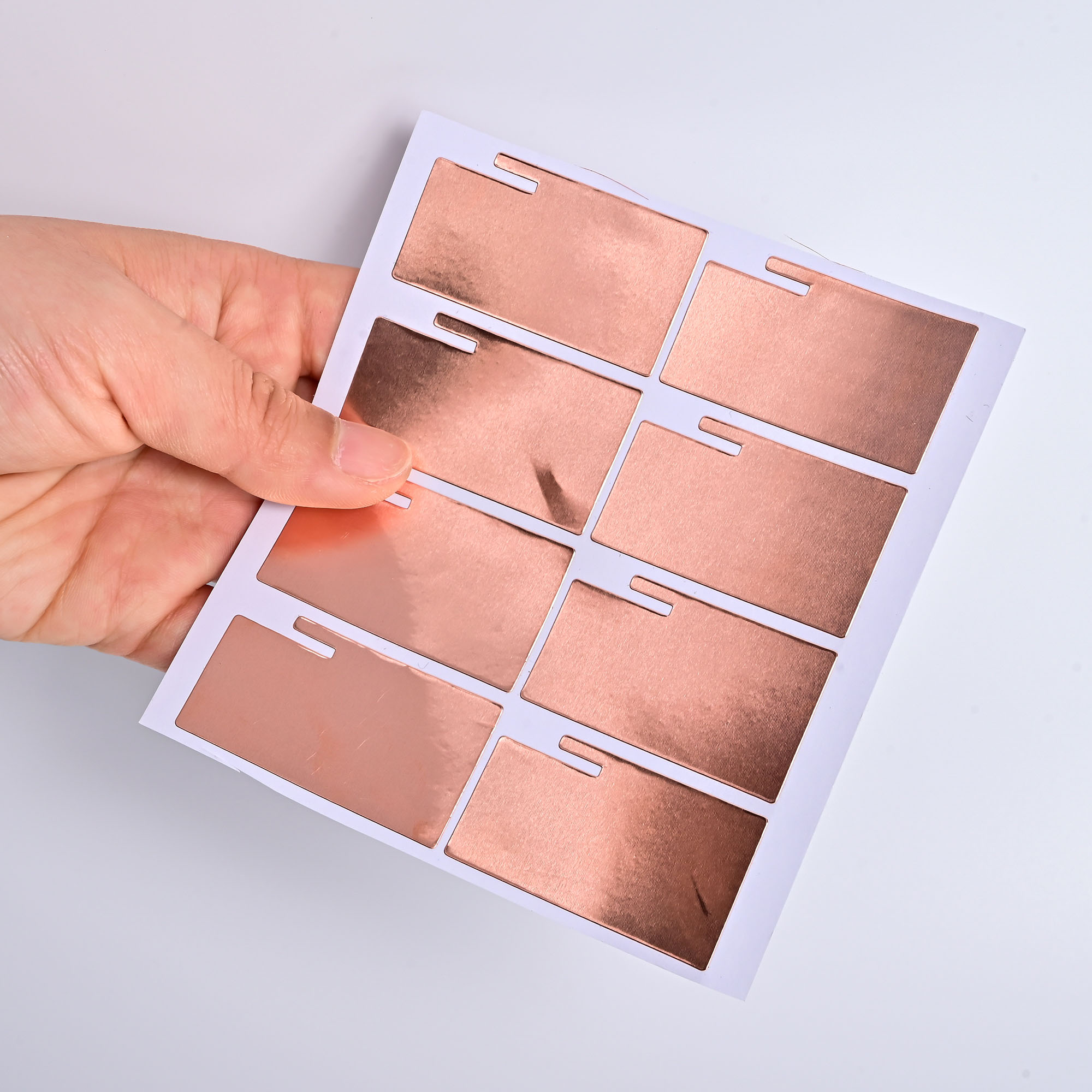

  • Materials: Conductive Copper Foil, Aluminum Foil, and conductive fabric over foam.

  • Applications: Telecommunications equipment, medical diagnostics, and high-frequency electronics.

3. Sealing, Cushioning & Thermal Management Providing critical environmental protection (IP65/IP67) and mechanical shock absorption.

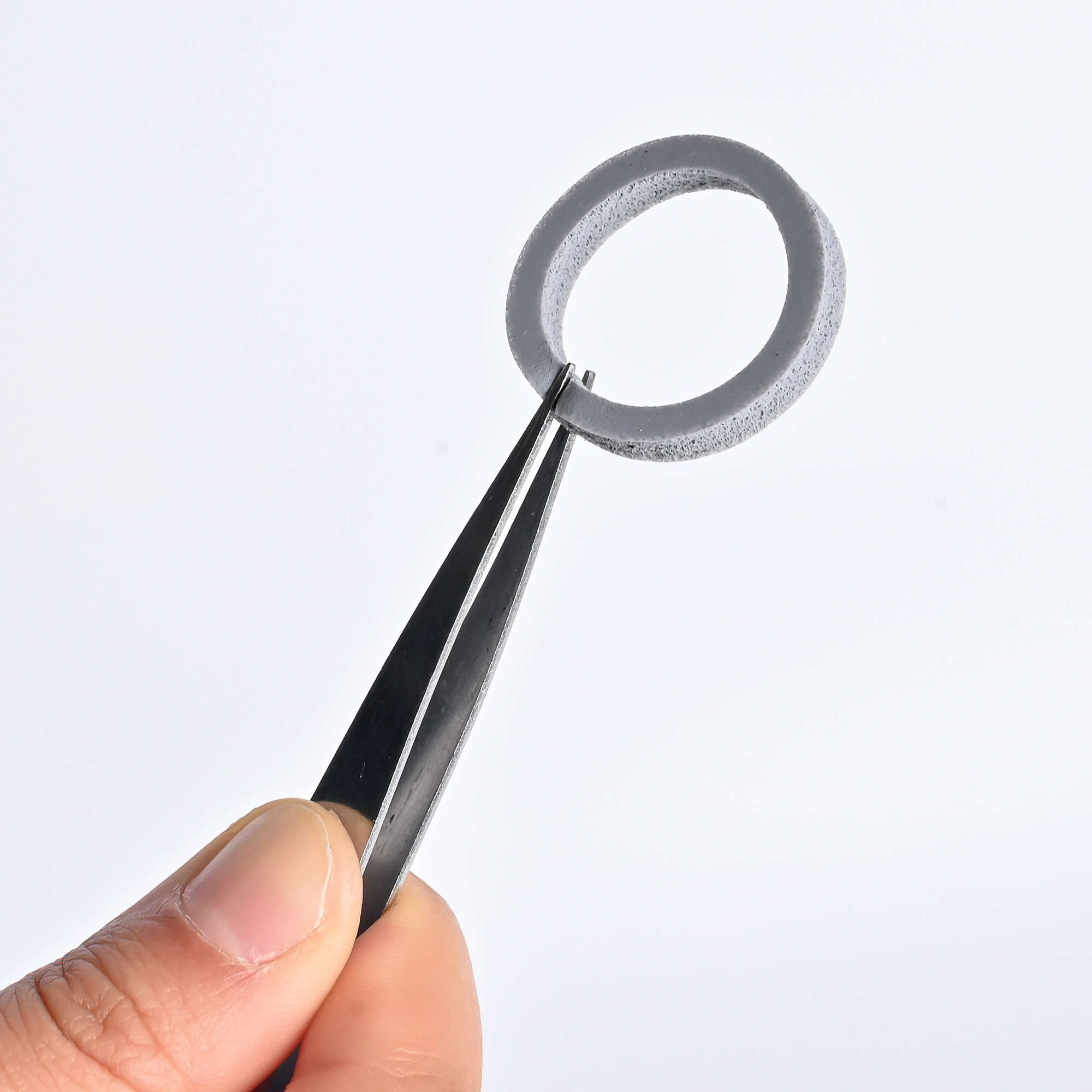

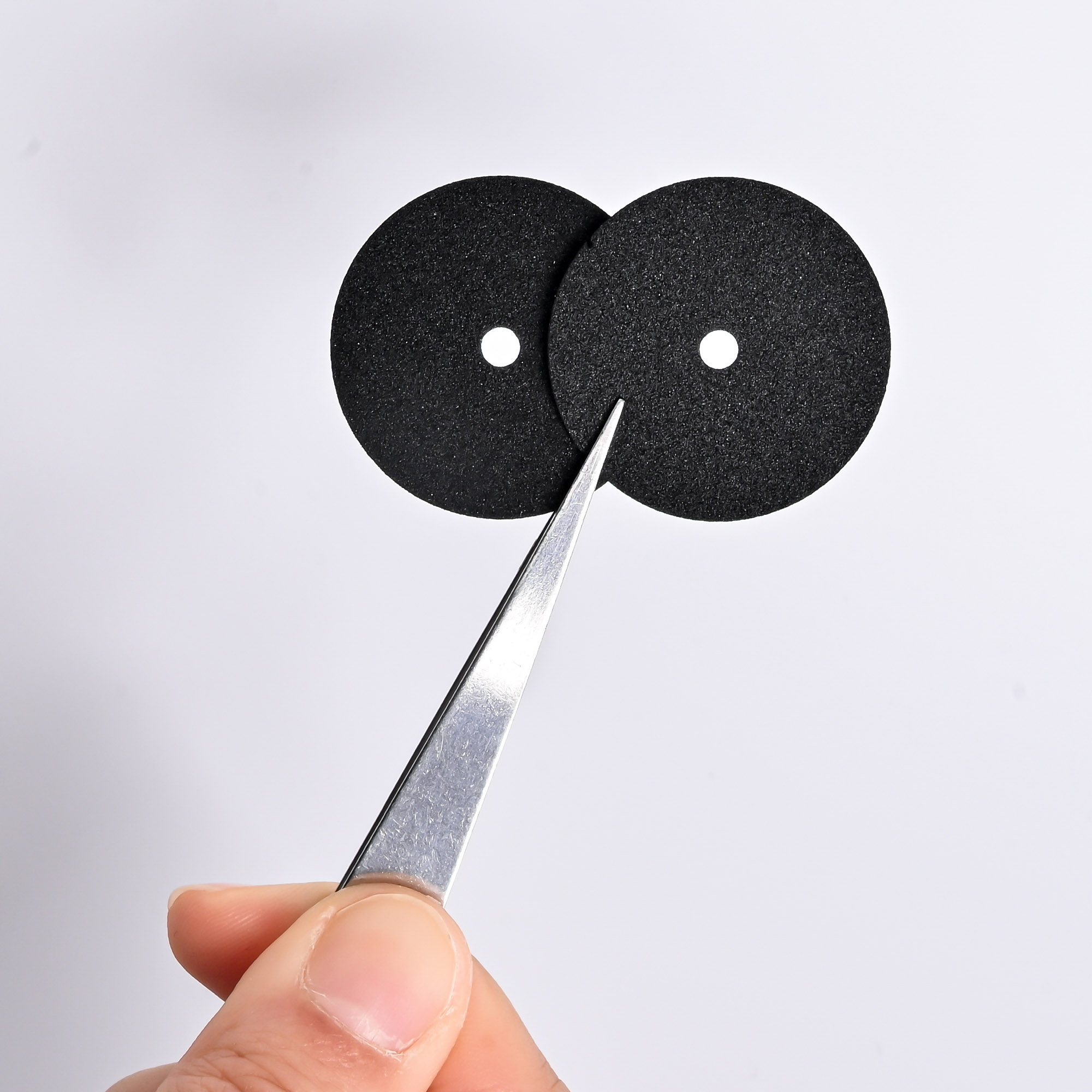

  • Materials: Industrial Silicone Gaskets, Rubber Pads, Carbon Felt, and specialized Wool Felt.

  • Applications: Waterproof enclosure seals, heavy-machinery vibration dampening, and acoustic insulation.

4. Custom Adhesive & Bonding Solutions Streamlining your assembly line with permanent, reliable peel-and-stick components.

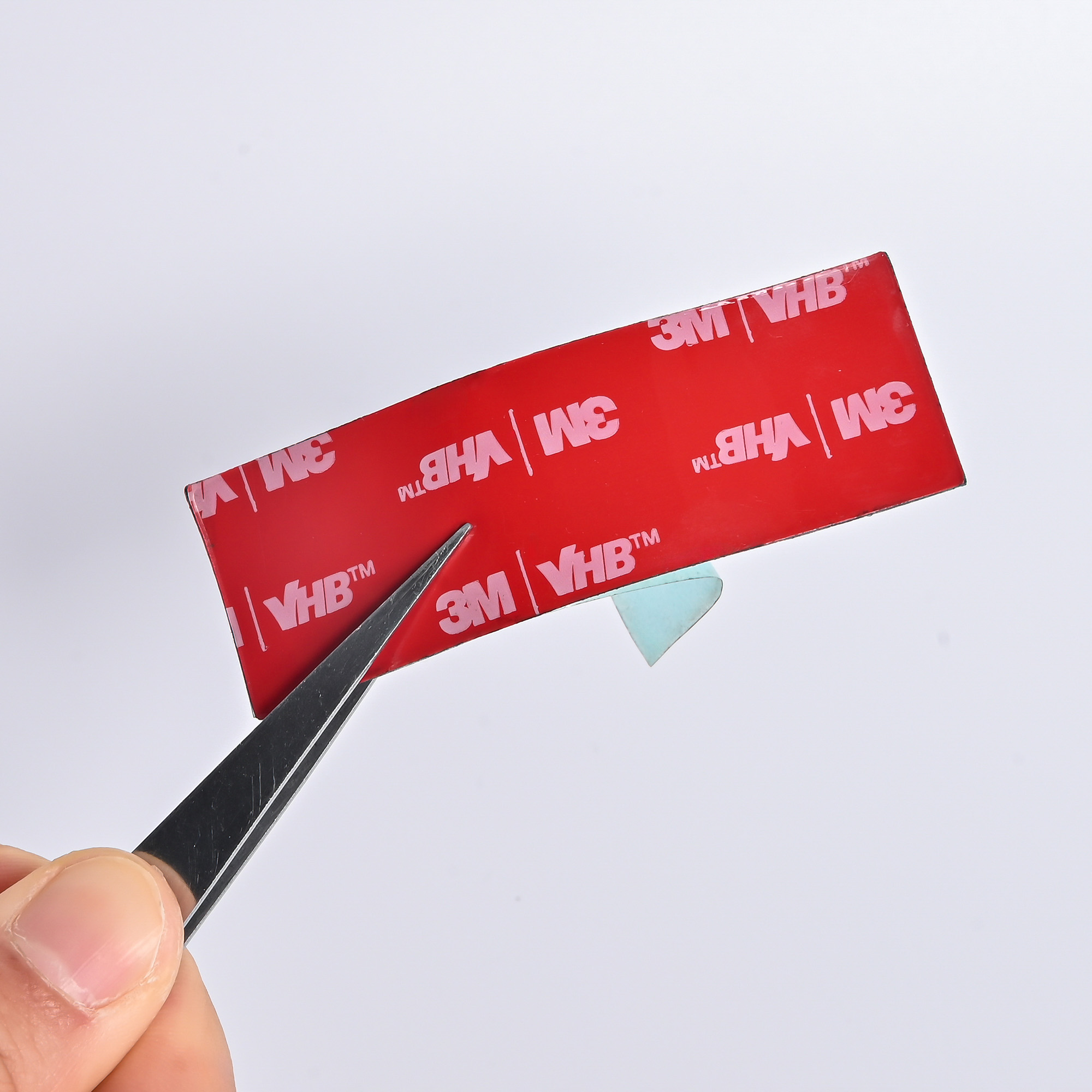

  • Materials: Precision die-cut double-sided tapes, 3M™ VHB™ Tapes, and transfer adhesives (e.g., 3M 467MP/468MP).

  • Applications: Component mounting, lens attachment, and secure membrane switch backing.

The BX-PANEL Manufacturing Advantage

We don’t just cut shapes; we optimize your production process.

  • Precision Tooling: Utilizing advanced flatbed and rotary die-cutting technologies to maintain micro-level dimensional tolerances.

  • Multi-Layer Lamination: We can seamlessly laminate different materials together (e.g., combining conductive copper foil with a layer of Kapton insulation and a 3M adhesive backing) into one single, easy-to-install part.

  • Rapid Prototyping to Mass Production: Whether you need 100 prototype pieces for structural testing or millions of units for mass global assembly, our facility scales immediately to meet your demand.

Ready to streamline your assembly process? Send us your drawing, and our engineering team will provide a rapid material consultation and custom quote.
