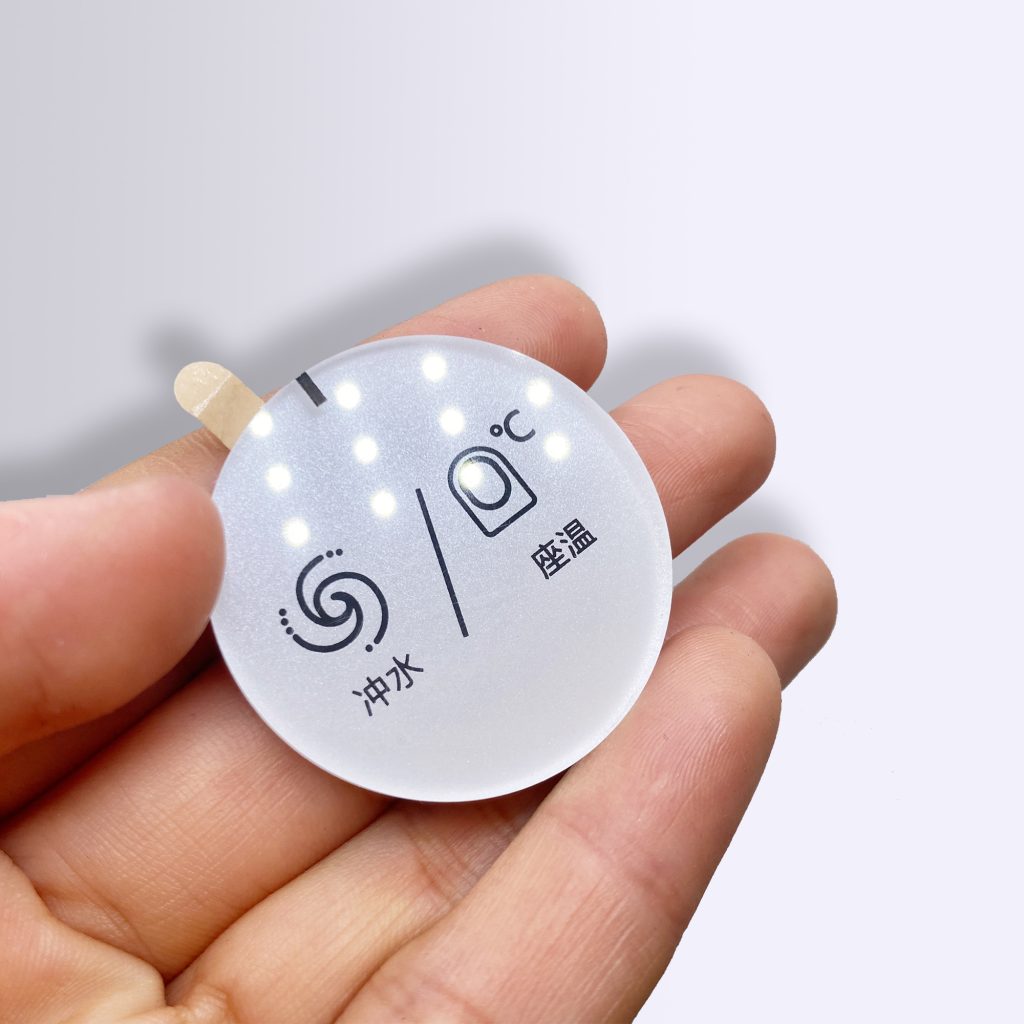

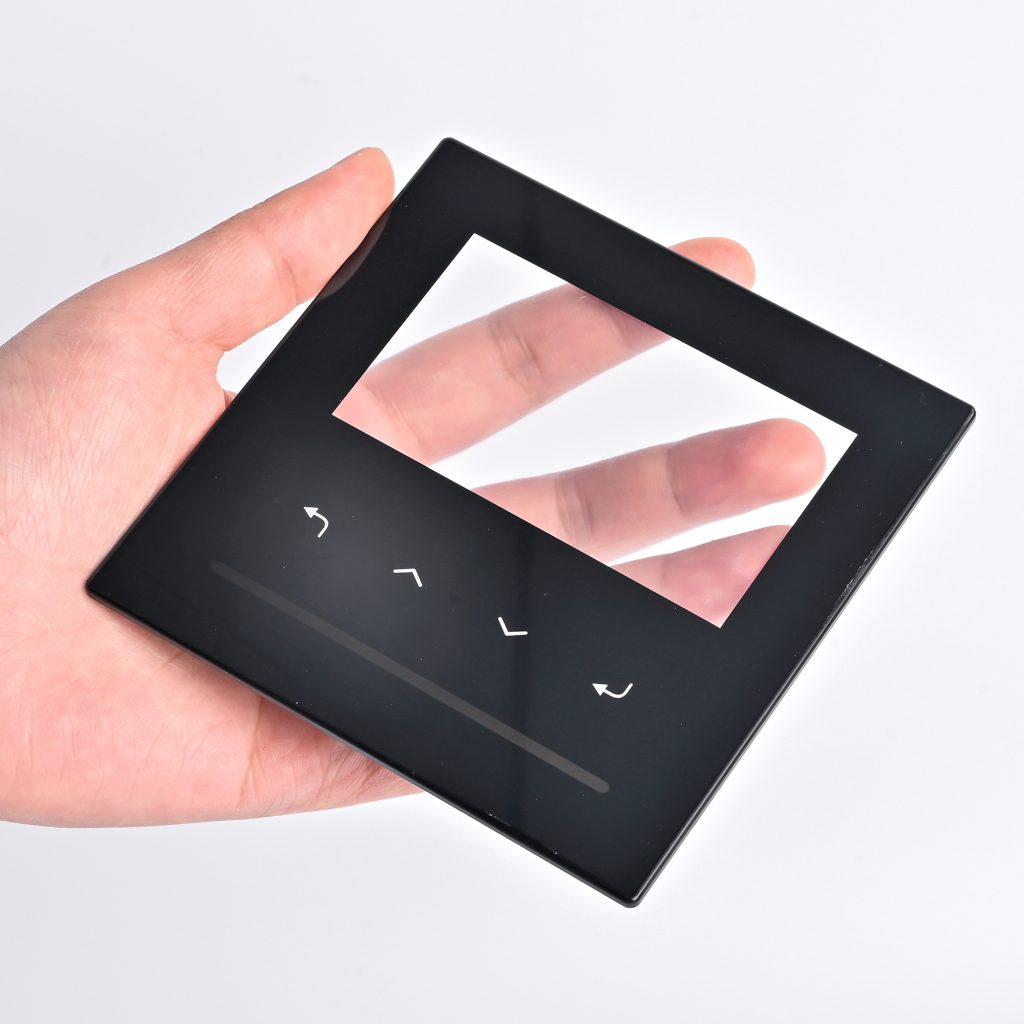

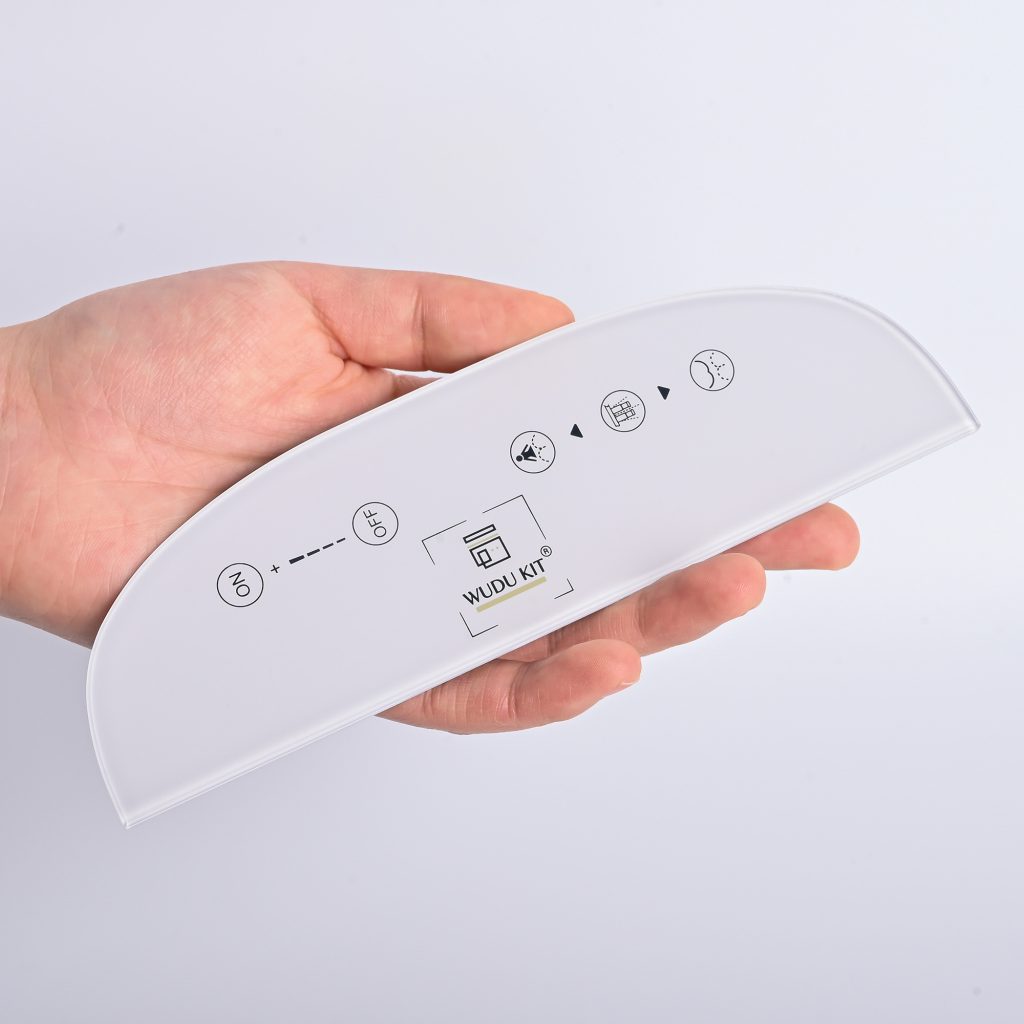

Acrylic & PMMA Overlay Panels
Custom Acrylic/PMMA panels with >90% transparency and high scratch resistance. We integrate rear-printed graphics, clear display windows, and capacitive touch circuits to provide a durable, cost-effective interface for your equipment.
>90% Transparency
Capacitive Touch
Scratch Resistant
Anti-Fog Coating
Flame Retardant
Precision CNC Cut
| Material Options | Physical Properties | ||
| Materials | PMMA, PC, Glass, PET | Thickness | 0.05 ~ 0.25mm / Custom |
| Printing | Screen, Offset, Digital | Temperature | -30℃ ～ +80℃ |
| Colors | Pantone, RAL System | Flame Retard. | UL-94:HB Grade |
| Performance & Adhesives | |||
| Performance | Waterproof, UV Res. | Panel Types | Capacitive, LED Backlit |
| Adhesives | 3M, Nitto, Tesa, Crown, Soken, Sony | ||
Acrylic & PMMA Overlay Panel Applications
Medical Equipment
Boasting >90% transparency with optional anti-fog treatments, these panels guarantee flawless data readability and reliability in critical clinical environments.
Industrial & Security
Outstanding surface hardness and resistance to chemical solvents ensure long-lasting durability. Effectively protects internal components in demanding factory settings.
Smart Home
Offers a high-gloss, premium finish with seamless capacitive touch integration. Perfect for modern appliances requiring an intuitive, glass-like user interface.
Automotive
Excellent weather resistance operating reliably from -30℃ to +80℃. Can be precisely CNC-machined and hot-bent to seamlessly fit complex dashboard contours.
Secure Export Packaging & Global Delivery
100% Final Inspection
Final Quality Check
Global Dispatch
Flexible Trade Terms
Frequently Asked Questions
What's the difference between PMMA (Acrylic) and PC panels?
A: PMMA gives you >90% light transmission and is much harder, meaning it resists scratches and UV yellowing better. PC handles heavy impacts better but scratches easily. For clear displays and touch controls, PMMA is usually your best choice.
Do you do capacitive touch integration?
A: Yes. We can print conductive circuits directly on the back of the acrylic or laminate a sensor layer to it. This gives you a sleek, flat touch interface with zero mechanical parts to wear out.
How do you protect the printed graphics from scratching?
A: We use reverse printing. All ink is printed on the back of the transparent panel. The thick acrylic itself acts as a protective shield, so your logos and colors will never scratch off from surface wear.
How do these panels mount to our equipment?
A: We supply the panels with pre-applied, industrial-grade adhesive backing (like 3M 467MP or VHB, depending on your housing). We die-cut the adhesive to perfectly match your panel, so all you have to do is peel and stick on your assembly line.
