Custom Graphic Overlay Panels: Engineered for Every Interface

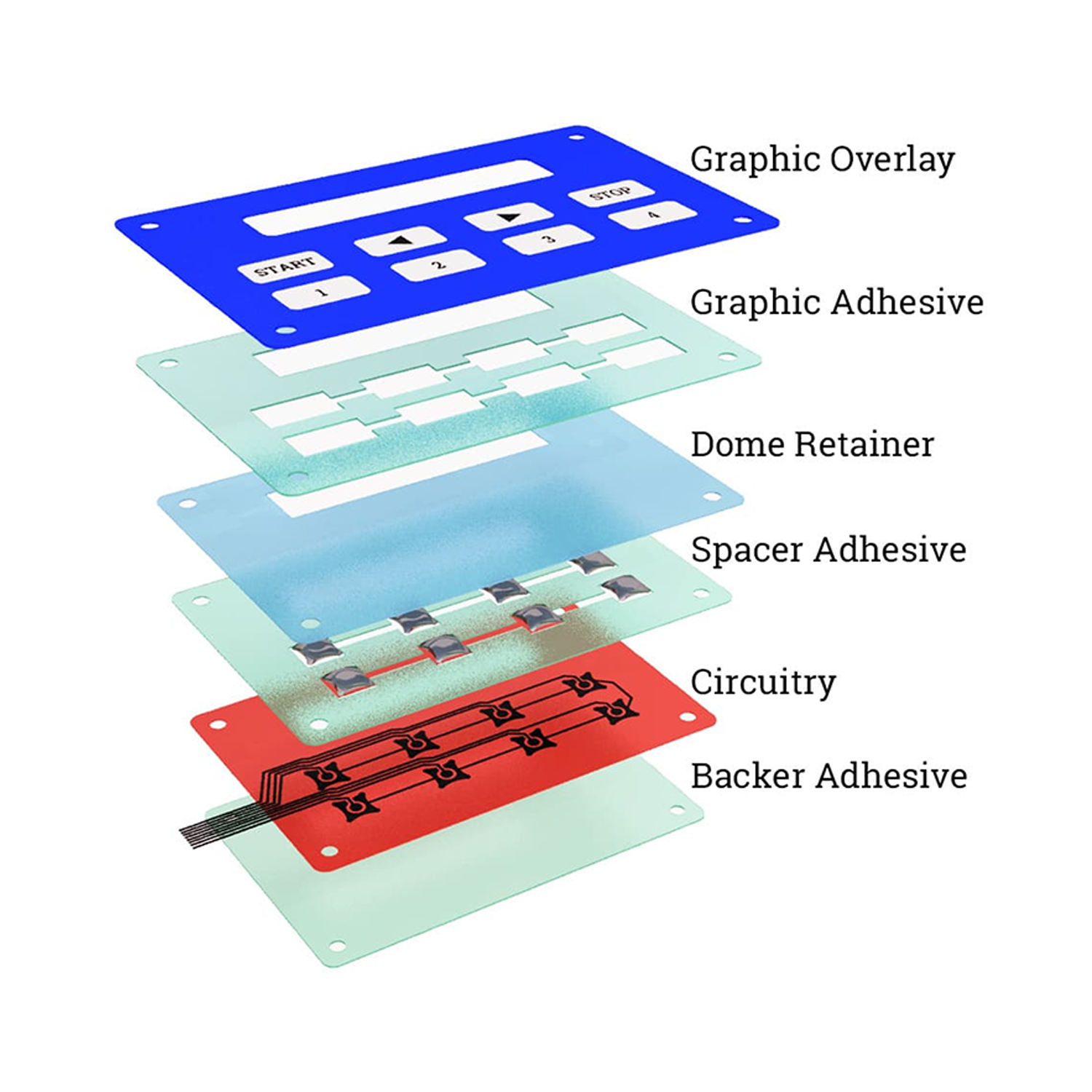

Forget generic labels. A graphic overlay panel is the critical visual and tactile barrier between your users and your sensitive internal electronics. At BX-PANEL, we engineer premium custom faceplates that guarantee flawless aesthetics, intuitive interaction, and uncompromising environmental protection.
Whether you require a highly transparent polycarbonate overlay for a smart home device or a rugged, chemical-resistant polyester panel for heavy machinery, our in-house manufacturing process is scaled to meet your exact specifications and budget.
The BX-PANEL Standard: Industrial-Grade Protection & Aesthetics
We don’t just print on plastic; we build interfaces designed to survive their environments. Our graphic overlays combine precise color matching with robust physical defense.
Sub-Surface Printing: All graphics, logos, and operating instructions are reverse-printed on the underside of the transparent substrate. The ink is permanently sealed behind the material, ensuring it never fades, scratches, or wears off—even under heavy daily use.
Tailored Environmental Resistance: Engineered to withstand relentless UV exposure, harsh industrial solvents, medical-grade sterilization, or severe temperature fluctuations based on your chosen material.
Seamless Equipment Integration: Backed with authentic, high-performance 3M™ acrylic adhesives (such as 467MP or 468MP) precisely matched to your equipment’s surface energy (metals, plastics, or powder coatings) for a permanent, peel-proof bond.

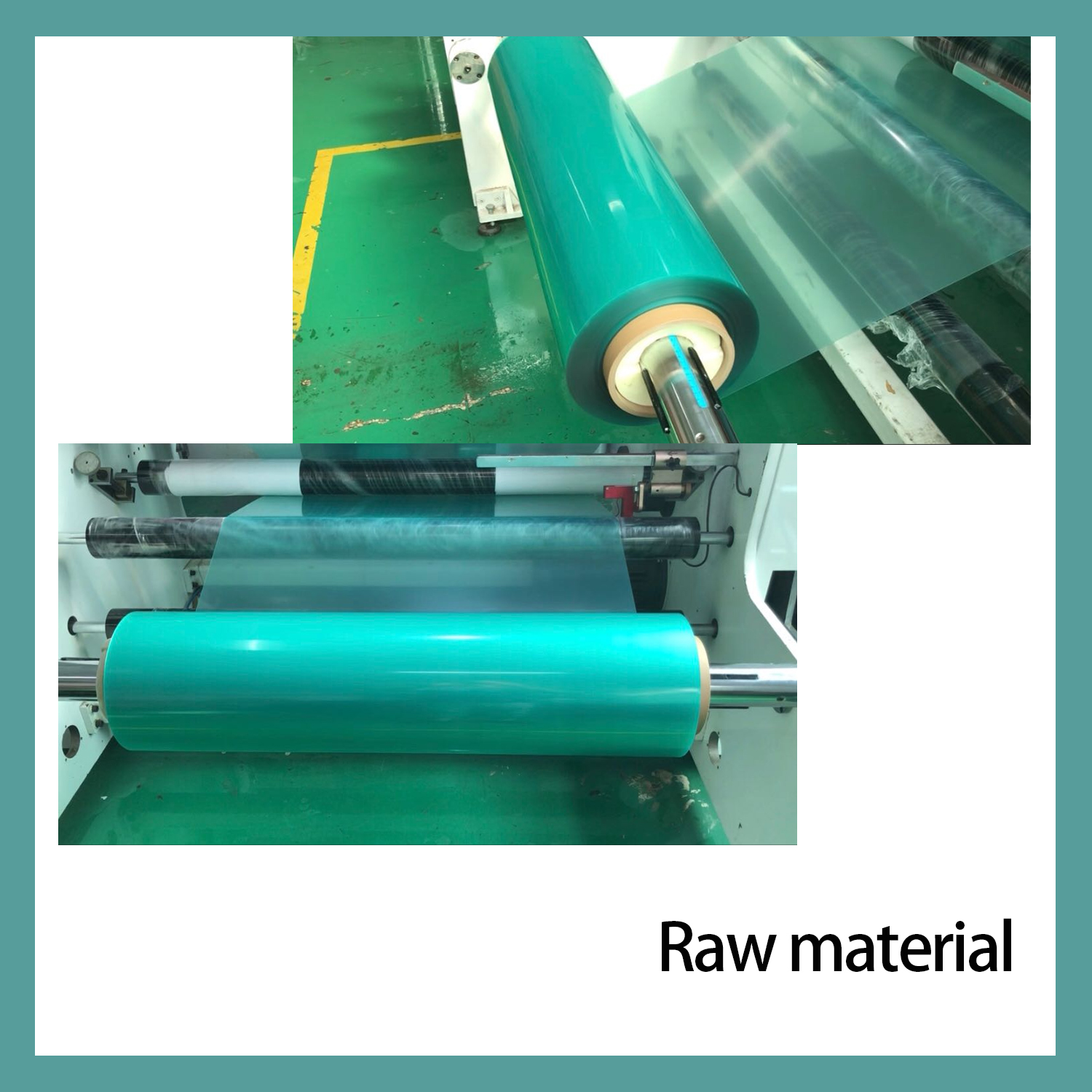

Scalable Material Selection: Matched to Your Project
The right substrate dictates the lifespan and cost-efficiency of your faceplate. Our engineers help you specify the optimal baseline:
Polycarbonate (PC / Lexan®): The ideal choice for commercial and consumer applications. It offers exceptional optical clarity, high impact resistance, and is highly cost-effective. Perfect for smart appliances, indoor instrumentation, and panels requiring crystal-clear display windows.
Polyester (PET / Mylar®): The absolute gold standard for heavy-duty and industrial environments. If your panel features embossed keys (requiring superior flex life) or operates in medical/chemical facilities, PET provides unparalleled durability and resistance to harsh chemicals.
Advanced Visual & Tactile Customization
Modern equipment demands a premium user experience. We incorporate advanced manufacturing techniques directly into your overlay panel:
Selective Texturing & Hardcoating: We can apply a durable matte finish across the panel to prevent glare and resist fingerprints, while leaving specific “windows” perfectly clear for LCD/OLED screens.
Dead-Front Graphics: Hidden icons, warning symbols, or logos that remain completely invisible seamlessly blending into the background until illuminated by underlying LEDs.
Precision Embossing: Rim, pillow, or custom-shaped embossing provides tactile finger-guidance for users without the need for underlying mechanical switches.

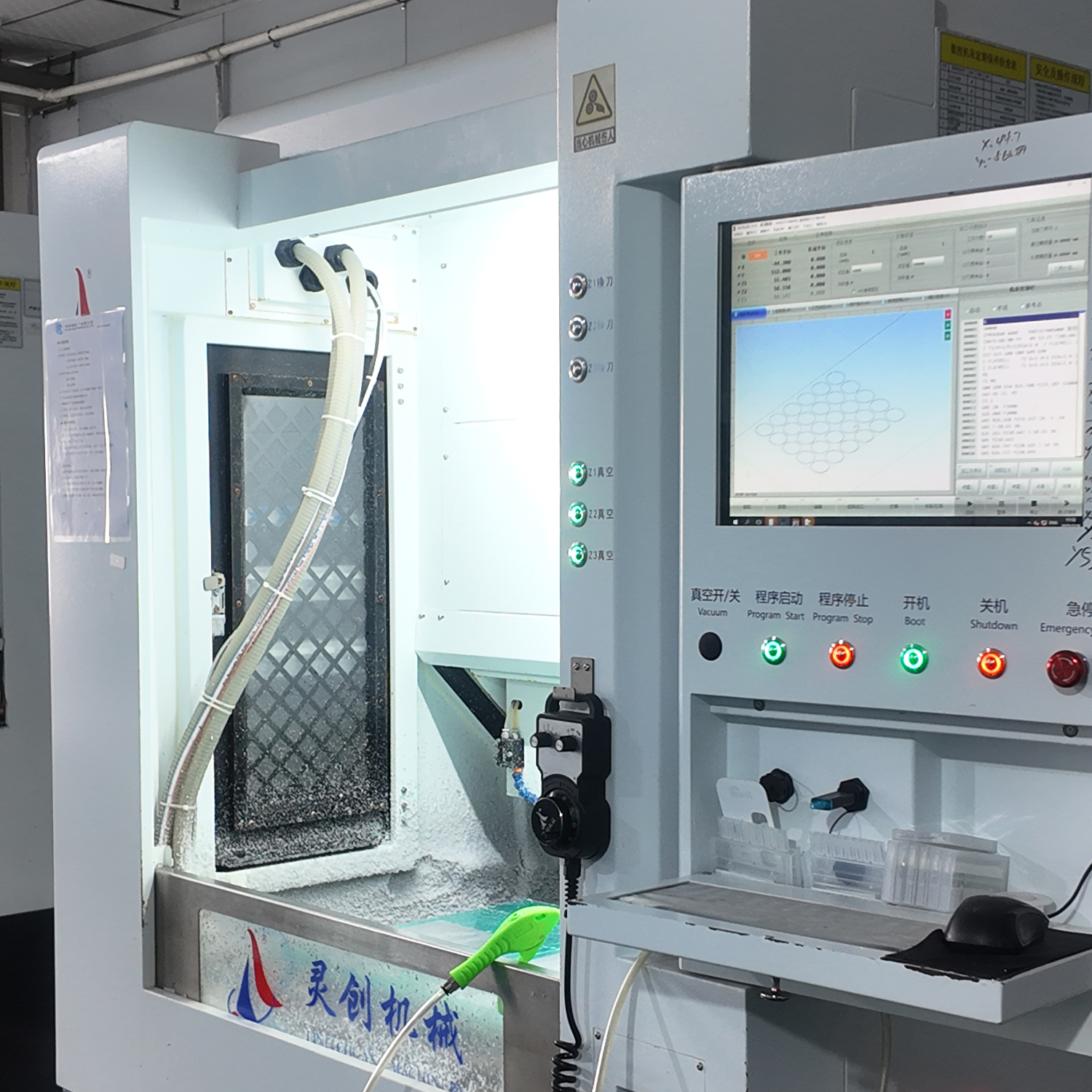

Custom Die-Cutting: CNC-routed cutouts with exacting tolerances for dials, mechanical switches, and connectors.
Trusted Across Diverse Global Industries
With complete control over our manufacturing process, we deliver scalable overlay solutions for OEMs in:
Smart Home & Commercial Appliances
Consumer Electronics & Fitness Equipment
Medical Devices & Diagnostic Equipment
Electronic Measurement & Testing Instruments
Industrial Automation & Heavy Machinery
Ready to upgrade your interface? Contact our engineering team for a custom Graphic Overlay Panel quote today.
