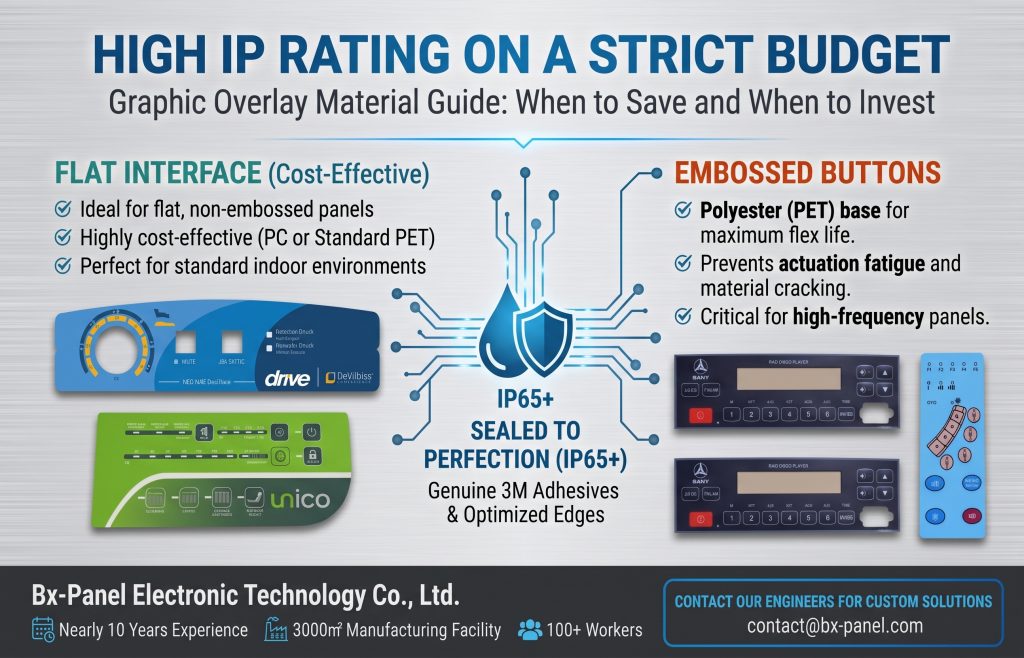

High IP Rating on a Budget: How to Choose Cost-Effective Graphic Overlay Materials
One of the most common questions we hear from hardware engineers and procurement managers is: “We have a strict budget for this project, but the equipment will be deployed outdoors. The waterproof and dustproof ratings must be flawless. How can we reduce costs?”
It is a challenging balancing act. To win bids, some suppliers will drastically downgrade the entire material stack-up. The result? Within six months, the graphic overlays begin to peel, moisture shorts out the circuits, and the resulting warranty claims cost hundreds of times more than the initial savings.
If you need a high IP rating (IP65 or above) on a limited budget, here is a practical engineering guide on exactly where you can cut costs—and where you absolutely must hold the line.
1. Surface Materials: PC vs. PET (Look at Structure, Not Just Price)
When reviewing quotations, engineers often compare Polycarbonate (PC) and Polyester (PET). Looking purely at the unit price, PC is undeniably cheaper and offers excellent light transmission.

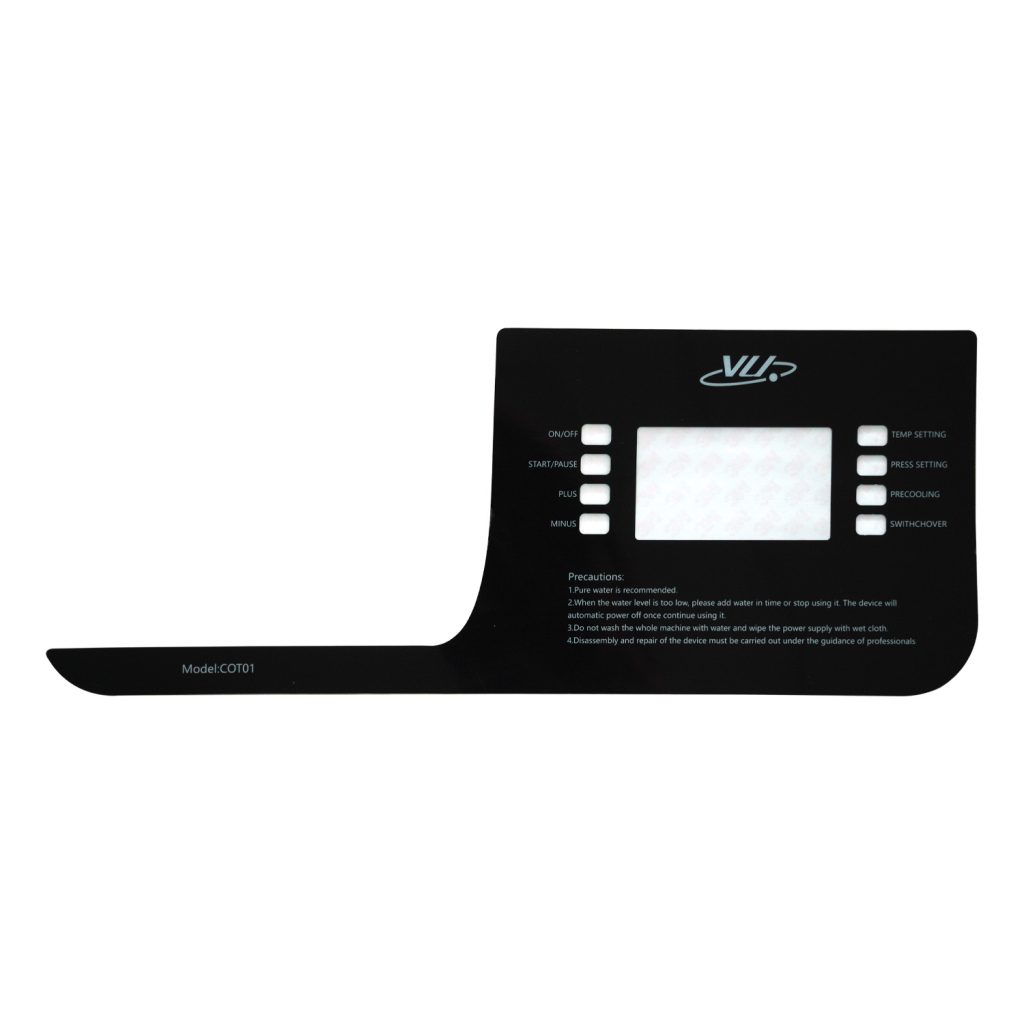

When to use PC and save money: If your device panel is completely flat (no embossed buttons) and operates in an indoor or non-UV environment, a high-quality PC film is a perfectly acceptable, cost-effective choice.
When you MUST use PET: If your graphic overlay features embossed buttons for tactile feedback, or if it will endure high-frequency actuation, do not compromise by using PC. Polycarbonate has poor flex life and fatigue resistance; the embossed areas will crack over time. In these scenarios, PET is strictly required. The slight increase in upfront material cost will save you thousands in future field replacements.
2. The Hidden Waterproofing Hero: Never Compromise on Adhesives
Whether a panel is truly waterproof relies heavily on the sealing performance of the rear adhesive layer, not just the surface film.
While we can negotiate the thickness of the surface material to lower costs, the adhesive layer is non-negotiable. When bonding overlays to diverse enclosures—such as bare aluminum, stainless steel, or rough-textured plastics—using genuine 3M double-sided adhesive is mandatory.
Substituting premium adhesives with inferior glues is a ticking time bomb. Once the edges begin to peel and moisture ingresses, it leads directly to false triggers in capacitive touch panels or silver migration and circuit breakage in traditional membrane switches.
3. "Free" Protection: Lowering Costs Through Smart Pre-Design
The most effective way to save money is not by using cheap materials, but by optimizing the design before manufacturing begins. We highly recommend involving your manufacturing partner during the initial drafting phase to achieve “free” cost reductions:
Optimize Edge Sealing: Simply designing a few extra millimeters of margin around the outer border significantly improves the waterproof seal without adding material costs.
Material Yield Optimization (Nesting): Dimensions and layout are highly technical elements of pricing. For example, if you are ordering large batches of small equipment nameplates (such as a standard 52x74mm spec), our engineering team can optimize the nesting layout on our standard raw material sheets. Maximizing the material yield rate directly drops your unit price. This is a far more reliable way to save money than cutting corners on quality.
Define True Cost-Effectiveness with Bx-Panel
True cost-effectiveness does not mean settling for inferior materials. It means eliminating “performance overkill” while strictly meeting the lifecycle requirements of your product.
