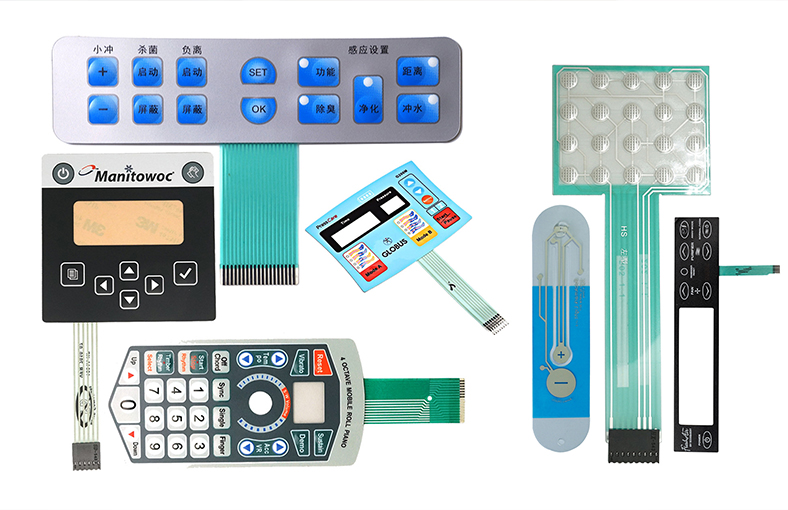

Custom Membrane Switches Engineered for Reliability
Forget generic keypads. A membrane switch is the critical bridge between human operators and heavy-duty machinery. At BX-PANEL, we engineer and manufacture custom membrane switch panels that guarantee flawless tactile feedback, severe environmental resistance, and reliable signal transmission for up to 1,000,000 actuations.
Whether you need a simple graphic overlay or a complex capacitive switch with integrated LED backlighting and FPC (Flexible Printed Circuit), we control the entire production process in-house.
The BX-PANEL Standard: Industrial-Grade Features
We don’t just print colors; we build interfaces that survive. Our membrane keypads replace traditional mechanical switches, offering superior durability and lower assembly costs.
Custom UI/UX Aesthetics: Precision screen printing with Pantone/RAL color matching, dead-front effects, and UV-resistant hardcoats.
NEMA 4 / IP67 Sealing: Fully sealed multi-layer structures resistant to water, dust, industrial oils, and harsh chemical washdowns.
Proven Longevity: Non-oxidizing silver conductive traces and premium metal domes ensure a service life exceeding 1 million cycles.
Extreme Environment Ready: Engineered to operate flawlessly in extreme temperature fluctuations and high-vibration settings.
Inside the Interface: How We Construct Your Switch

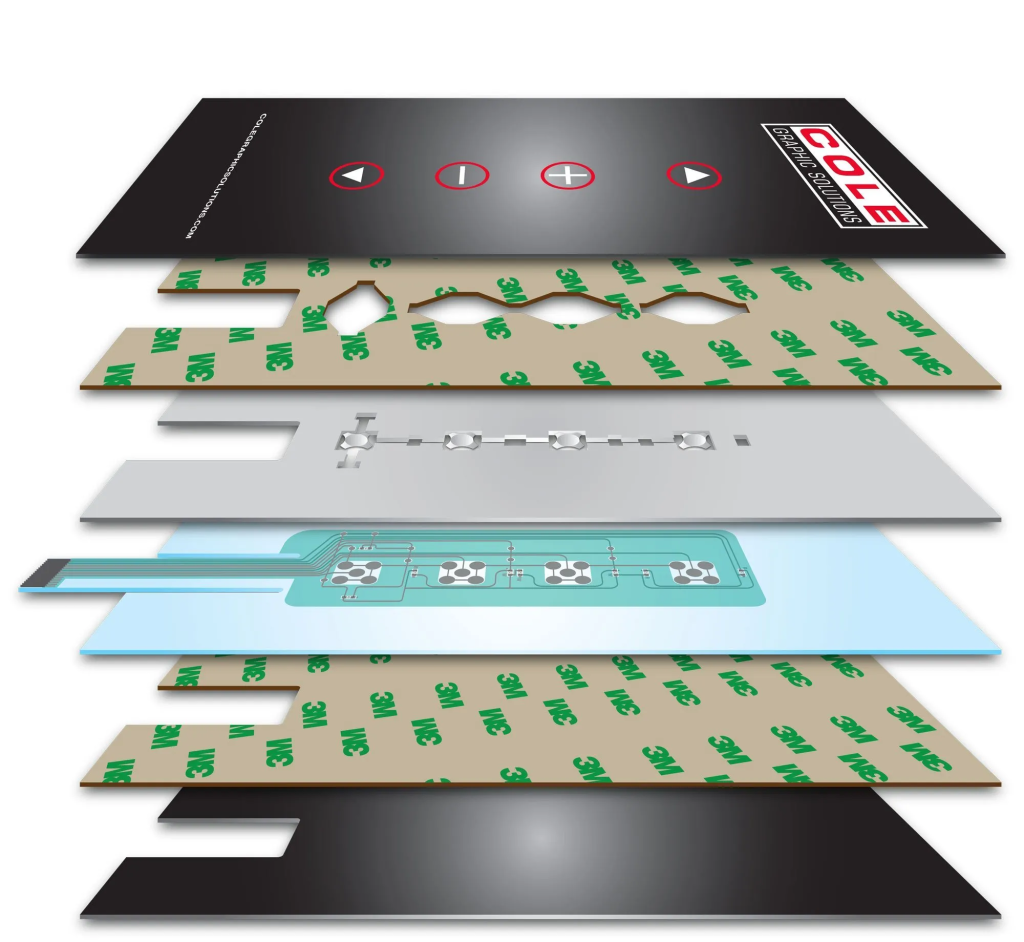

A reliable membrane switch requires premium raw materials at every layer. Here is our standard architectural stack-up:
Rear Mounting Adhesive: Industrial-grade 3M adhesive tailored to your specific housing material (plastic, aluminum, or stainless steel).
Graphic Overlay (Panel Layer): We use industry-leading Autotex® UV PET or Lexan™ Polycarbonate for superior chemical resistance and flexibility.
Overlay Adhesive: Authentic 3M 467MP/468MP acrylic adhesive bonds the graphic layer to the circuit stack.
Upper Circuit / Tactile Layer: Features tactile metal domes (snap domes) or polydomes that provide that satisfying “click” and haptic feedback.
Spacer / Isolation Layer: Die-cut dielectric layers prevent accidental short circuits and maintain precise actuation force.
Lower Circuit (Routing): Screen-printed silver conductive ink on polyester, or highly durable Copper FPC / Rigid PCB for dense component mounting.
Advanced Integration & Illumination Options
Modern equipment demands intuitive user feedback. BX-PANEL incorporates advanced features directly into the membrane stack:
- Integrated LED Indicators: Low-profile SMD LEDs embedded within the circuit for status indication.
- Light Guide Film (LGF) & EL Panels: Uniform, rich backlighting across the entire keypad without hot spots.
- EMI/RFI Shielding: Printed conductive carbon/silver grids or aluminum foil layers to protect sensitive medical and military equipment from interference.
Built for Demanding Industries
Our membrane switches, capacitive switches, and silicone keypads are trusted globally by OEMs in:
- Medical Devices & Healthcare Equipment
- Industrial Automation & CNC Controls
- Electronic Measurement Instruments
- Commercial Appliances & Vending
Interactive Circuit Selector (Silver vs FPC)
Ready to upgrade your interface? Contact our engineering team for a custom membrane switch quote today.
