Laser Engraving vs. Chemical Etching: Scaling Industrial Metal Nameplates
At 50 pieces, almost any metal marking method works. At 50,000 pieces, the wrong process will break your budget and your lead time.
When scaling up industrial metal nameplates, procurement managers inevitably face a hard choice: laser engraving vs. chemical etching. Both technologies deliver permanent marks on metal substrates, but their behavior on the factory floor is fundamentally different.
Here is what actually happens to your unit cost, production speed, and environmental durability when you push these two processes to high volumes.
Capacitive False Triggers
Budget IP Overlays
Foggy Overlay Windows
1. Laser Engraving: The Variable Data Champion
Laser engraving utilizes a focused beam to vaporize or chemically alter the surface layer of the metal substrate.
-
The Volume Reality: Because lasers require zero physical tooling, masks, or films, there is no setup cost. You load the CAD/vector file and start marking. This makes laser engraving the absolute standard for variable data. If an order requires 10,000 nameplates and every single one needs a unique sequential serial number, barcode, or QR code, laser engraving is the only viable option.
-
The Bottleneck: Laser engraving is a sequential, line-by-line process. The laser head must physically travel across the X and Y axes. A highly complex, graphic-heavy nameplate takes the exact same cycle time whether it is piece number 1 or piece number 10,000. At high production volumes, this sequential processing becomes a severe bottleneck.
2. Chemical Etching: The Batch Processing Powerhouse

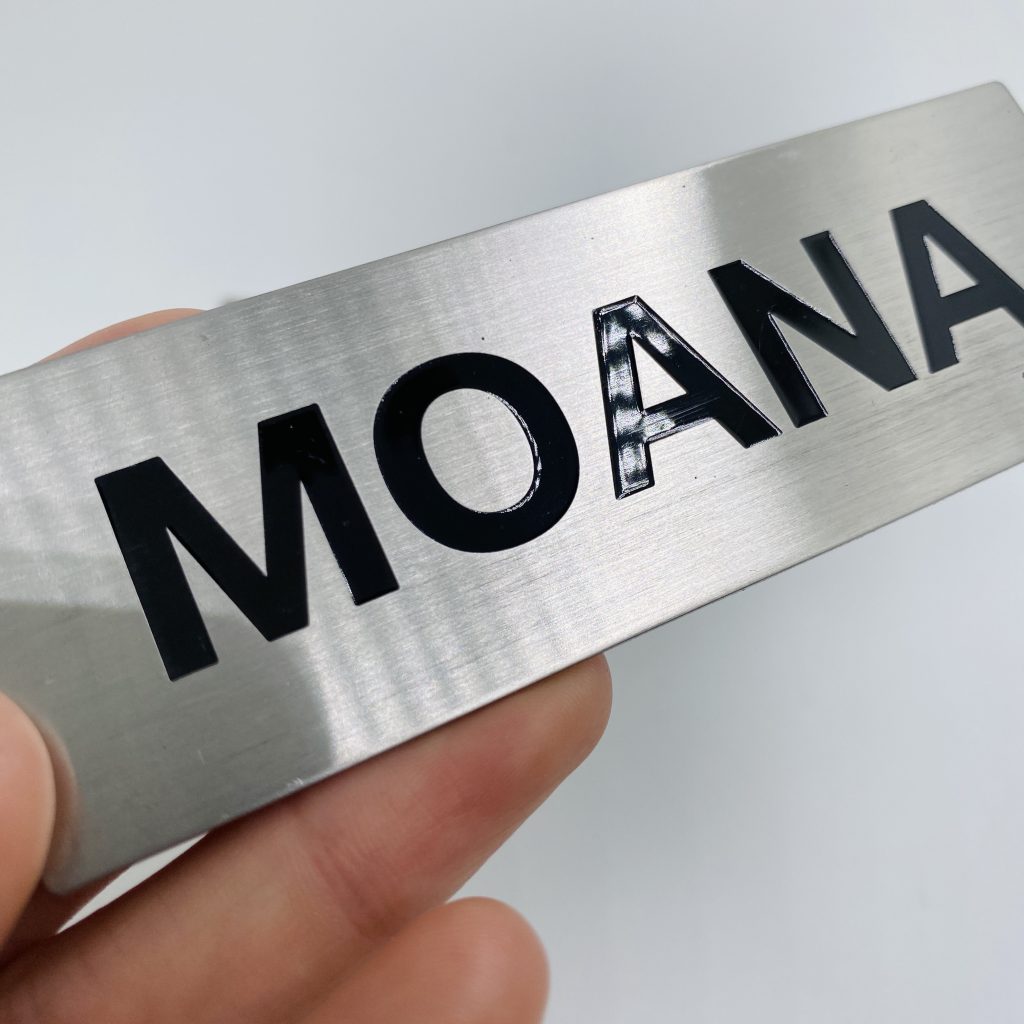

Chemical etching involves applying a protective photo-resist mask onto a metal sheet and submerging it in an acidic bath. The acid eats away the exposed areas, creating deep recesses that are typically filled with baked enamel paint.
-
The Volume Reality: Chemical etching requires heavy upfront preparation: outputting films, exposing screens, and prepping chemical baths. For a 50-piece run, the tooling cost makes it prohibitively expensive. But at scale, it is an unmatched batch-processing powerhouse.
-

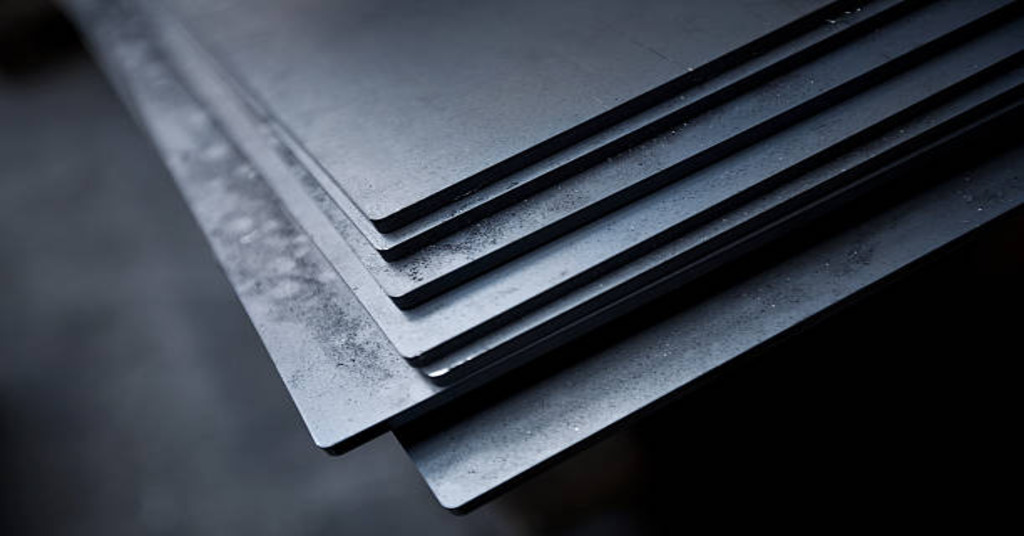

The Speed Advantage: An acid bath etches a simple text string and a highly complex electrical schematic at the exact same speed. More importantly, we can process entire metal sheets simultaneously, etching hundreds of units in a single machine cycle.
The Cost Crossover Point & Field Survival
For most standard-sized industrial nameplates, the cost crossover point typically hits around 1,000 to 1,500 units. Below that threshold, the lack of tooling makes laser cheaper. Above that, the batch speed of chemical etching dramatically lowers the unit cost.
Beyond cost, engineers must consider the physical operating environment:
| Feature | Laser Engraving | Chemical Etching |
|---|---|---|
| Best For | Variable data, serial numbers, barcodes | Fixed graphics, schematics, large batches |
| Volume Sweet Spot | Low to Medium (1 - 1,500 pcs) | High Volume (1,500+ pcs) |
| Setup Costs | Zero tooling cost | Moderate upfront tooling cost |
| Harsh Environment Durability | Good (but can be obscured by paint/grease) | Excellent (recessed depth ensures readability) |
-
Laser Marks: Excellent for indoor tracking. However, shallow laser marks can become illegible if the equipment is eventually painted over, heavily scratched, or covered in thick industrial grease.
-
Chemical Etched Marks: The acid physically removes metal (typically 0.05mm to 0.1mm deep). Even if the baked enamel paint is completely sandblasted away by years of harsh weather or chemical washdowns, the recessed data remains permanently legible through physical touch and shadow.
Final Thoughts
These tiny terminals and plastic housings account for a fraction of the membrane switch’s cost, yet they hold the absolute lifeline of your equipment’s signal transmission.
When prototyping and customizing with Bx-Panel, if you aren’t sure which connector to use, simply tell us two things: Is your machine prone to vibration? and How much space is left on the motherboard? Our team will directly match you with the most fail-safe terminal and housing solution.
