Membrane Switch Backlighting: Standard LEDs vs. LGF
If your equipment operates in dark environments, you need backlit buttons. But when designing the control panel, engineers often hit the same wall: traditional LEDs create glaring “hot spots,” or they force you to make the membrane switch thicker just to hide the bulb.
If you want clean, uniform lighting without adding bulk to your panel, here is a direct comparison between standard surface-mount LEDs and Light Guide Film (LGF).
Capacitive False Triggers
Budget IP Overlays
Foggy Overlay Windows
1. Standard SMD LEDs: The Basic Indicator
Most backlit membrane switches rely on surface-mount (SMD) LEDs embedded directly into the circuit layer.
The Pros: Very low cost. Simple to wire. Perfect for small, basic on/off status dots.
The Catch (Hot Spots & Bulges): LEDs are point light sources. If you try to illuminate an entire button area or a large company logo with standard LEDs, the center will be blindingly bright while the edges stay dark. Furthermore, standard LEDs have physical height. To clear the bulb, you either need to thicken the internal spacer layer or emboss an ugly “bump” on the front graphic overlay.

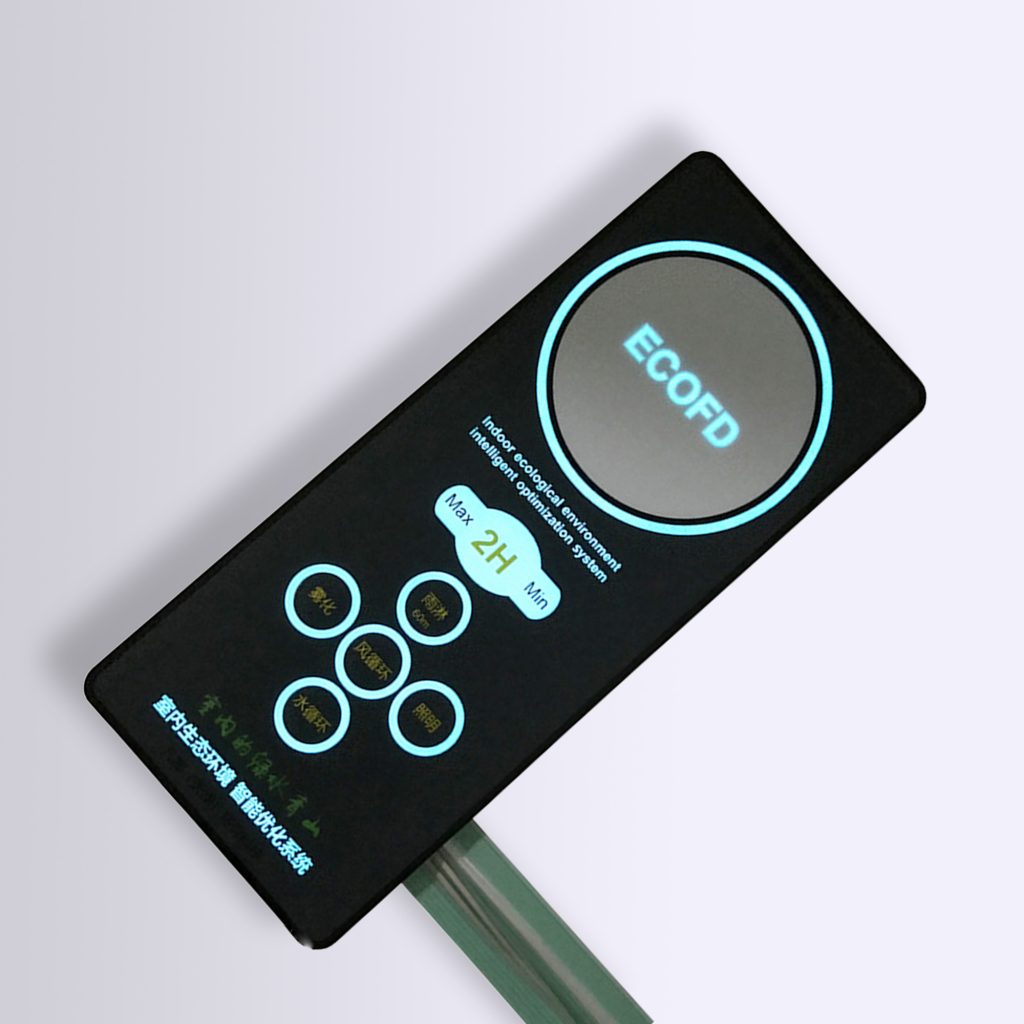

2. LGF (Light Guide Film): The Uniform Solution
LGF is a highly engineered, ultra-thin polycarbonate or silicone film placed between the graphic overlay and the circuit. Side-firing LEDs shoot light into the edge of the film, and microscopic structures on the film push that light evenly up to the surface.
The Pros:
Zero Hot Spots: Delivers a perfectly even, soft glow across large buttons, complex icons, and wide text arrays. Excellent for blind operation in the dark.
Ultra-Thin Profile: The film itself is incredibly thin (often under 0.2mm). It adds virtually no thickness to your membrane switch stack-up. Your panel stays completely flat—no embossed bumps required.
Fewer LEDs Needed: A single side-firing LED paired with LGF can illuminate a much larger area than a standard top-firing LED.
The Catch: Tooling and material costs for LGF are slightly higher than dropping in a few standard LEDs.
3. The Engineer's Verdict: Which to Spec?
Match the lighting technology directly to your panel’s requirement:
Spec Standard LEDs if: You only need a simple, 2mm indicator window (like a power status dot) and want to keep the unit price as low as possible.
Spec LGF if: You need to backlight entire keys for marine dashboards, medical devices, or premium machinery. If your design requires a strictly flat, premium control panel with uniform lighting, LGF is the only correct choice.
Final Thoughts
Not sure how to route the lighting for your next interface? Send your CAD files to the engineering team at BX-Panel. We will design the optimal backlight stack-up for your budget.
